Star SB-16D 6 Axis

X, Y, Z, ZB, XB rapid feed: 35,000 mm/min
C-axis rapid feed: 198,000 °/min (550 min⁻¹)
X, Y, Z, ZB, XB max feed: 10,000 mm/min
C-axis max feed: 10,000 °/min (27.8 min⁻¹)
Minimum input unit X, Y, XB: 0.001 mm / 0.0001 in
Minimum input unit Z, ZB: 0.001 mm / 0.0001 in
Minimum input unit C: 0.001°
Maximum turning diameter: Ø16 mm (5/8 in)
Fixed guide bushing stroke: 205 mm (8 in)
Rotating guide bushing stroke: 155 mm (6–3/32 in)
Rotating magic guide bushing stroke: 155 mm (6–3/32 in)
Max drilling with driven tool: Ø6 mm, Ø4 mm
Max threading with driven tool: M5×P0.8, M3×P0.5
Max milling: Ø10 mm, Ø7 mm
Max threading cut: M8×P1.25
Operation: right-hand machining station
Configuration: integrated mechanical/electrical setup
Dimensions (L×W×H): 1861 × 1060 × 1750 mm
Spindle height: 1060 mm
Weight: approx. 1700 kg
Main spindle speed: max 10,000 min⁻¹
Spindle speed control: S-command + direct 5-digit command
Main spindle motor: 2.2 kW continuous, 3.7 kW 15 min/60% ED
Spindle indexing: 15°, 1°
Tool combinations: 1–3 spindles for Ø12 mm, Ø10 mm, Ø6 mm tools
Tool holders: ER11 or ER16
Drill spindle tool count: 4
Drill spindle max speed: 5000 min⁻¹ (ER16), 7500 min⁻¹ (ER11)
Drill spindle motor: 0.4 kW
Drill tool selection: servo motor
Rear spindle max chuck diameter: Ø16 mm
Rear spindle max part length: 80 mm
Rear spindle max travel: 30 mm
Rear spindle max push-out length: 50 mm
Rear spindle speed: max 8000 min⁻¹
Rear spindle motor: 100 W AC servo
Rear spindle tools: 4-spindle attachment
Rear spindle max drilling: Ø8 mm
Rear spindle max threading: M6×P1.0

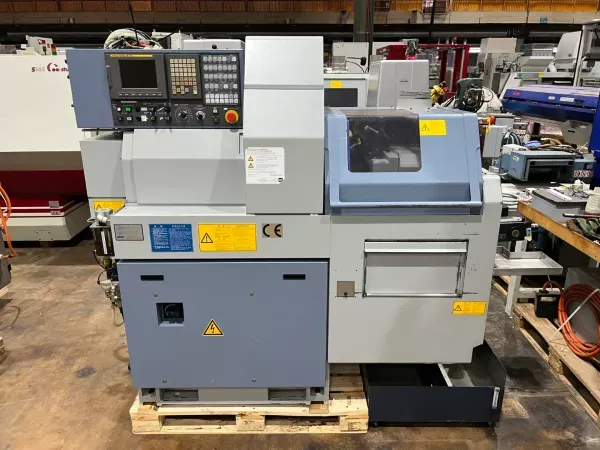

Includes: STAR SB-16D CNC automatic lathe
Includes: fire suppression system
Includes: coolant tank
Includes: LNS Tryton-112 bar feeder
Includes: high-pressure pump
Includes: machine accessories
Includes: bar feeder accessories
Includes: complete operating documentation
