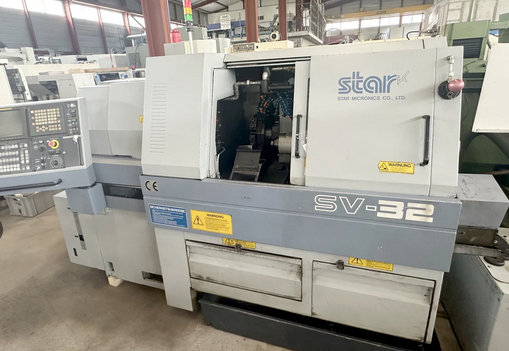

Star GE FANUC Series 16i-T 7000 t/min stepless SV 32 4 Axis

Rapid traverse X: 15 m/min
Rapid traverse Y: 15 m/min
Rapid traverse Z: 18 m/min
C axis
Control: GE FANUC Series 16i-T
Main spindle speed: 280–7000 t/min stepless
Main spindle power: 5.5 / 7.5 kW
Back spindle speed: 280–7000 t/min
Back spindle power: 2.2 / 3.7 kW
Max tapping length back spindle: 150 mm
Max turning diameter: 32 mm
Max turning length: 300 mm
Max threading diameter: 12 M
Thread drill diameter: 12 M
Inner taper type: F37
Turret positions: 10
Tool-holder numbers: 2
Turret stations: 7
Number of driven tools: 3
Turning tools: 4 pcs
Voltage: 3x 380 V 50 Hz
Air supply: 5 bar
Weight: 3800 kg
Overall dimensions L x W x H: 2645 x 1405 x 1680 mm
Accessories: Spindle blow-out (back spindle)
Accessories: Set of toolholders
Accessories: Bar feeder IEMCA BOSS 338/32
Accessories: Parts catcher
Accessories: Workpiece conveyor
Accessories: Coolant system 180 l
Accessories: Set of collets
Accessories: Tool cabinet
Accessories: Central lubrication
Accessories: Fire extinguishing system
Accessories: Status light
