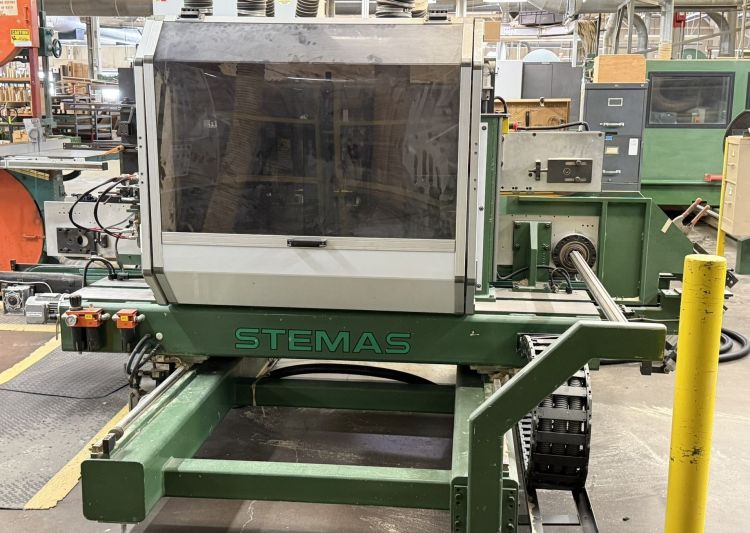

Stemas S311 Double End Tenoner

Max working length 1000 mm (39.3")
Min working length 120 mm (4.72")
Max working thickness 50 mm (1.96")
Min working thickness 12 mm (0.47")
Max workging width 250 mm (9.84")
Min working width 30 mm (1.18")
Arbor diameter 40 mm (1.57")
Spindle speed range 3000 to 6000 rpm
Top gravity hopper part feeder arms
Automatic push feeder fence
Automatic machined part return conveyor system to the front of the machine
1st head: (left and right) top and bottom opposing saw trimmer heads
3 Hp, 220/440 volt three phase drive motors
2nd head: (left and right) vertical shaper spindle
7-1/2 Hp, 220/440 volt three phase drive motor
Sound and safety enclosure around all stations
Lift up access doors with inspection window
Freestanding operator electrical and control cabinet
