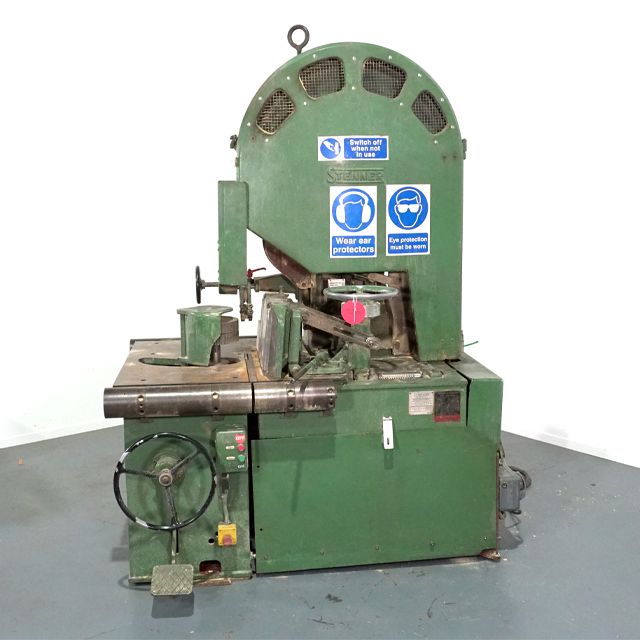

Stenner VHM 36

Ref : 2303256-15-MT
Condition : Used
Manufacturer : Stenner
Model : VHM 36
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Used Band Resaw
Machine base is extremely heavy all steel welded construction with robust cast iron top column
all machined for more band wheel and feed work support.
Also allows very simple installation.
Band wheels are high-duty one piece cast meehanite iron machined all over and balanced.
Bottom wheel is heavier to prevent overrun. 3″ face on the wheel.
Wheels are cleaned by weight loaded non metallic wheel scrapers.
Efficient saw and wheel cleaning devices lubricated from a reservoir.
Saw strain applied by sensitive coil spring device with graduated indicator.
Radial arm feed gear rolls with weight tension and foot pedal open and close and steel feed rollers.
Feed rolls can be easily removed for changing to rubber rolls
Heavy Roller fence assembly – quick opening and tilting 0-45º with large indicator.
Hinged saw guards for simple saw changing.
Top and bottom guides
Horizontal table rollers are 4-1/2″ diameter and extended full width of the table at infeed and outfeed ends.
c/w pushbutton starter, 4 Feed Speed control,
Machine is complete with top and bottom saw guides, guards, multi roller fence.
Electrics include – Wye Delta Starter (Soft-Start) and are 208/415 volts 60 cycles that can run on 220/3/60

Diameter of saw pulleys 36″ 914 mm
Width of saw pulley face 3” 63.5 mm
Maximum width of saw 3” 76.2 mm
-You can run narrower blades if desired
Maximum length of saw 18’4″ 5.58 M
Minimum length of saw 17’8″ 5.38 M
Maximum height of top saw guide above table 16″ 406 mm
Maximum opening between feed rolls to saw line 9″ 228 mm
Maximum opening fence to saw line 9″ 228 mm
Table height from floor level 32″ 812 mm
Overall height from floor level 7’2″ 2.19 mm
Speed of saw pulleys 750 RPM
Feed Speeds (4 speeds) to 98 FPM
Net weight of machine. 4170 lbs. 1890 kg
Dimensions: 68” (L) x 67” (W) x 86” (H) + Height of base to mount bottom wheel
Main motor: 20 HP
