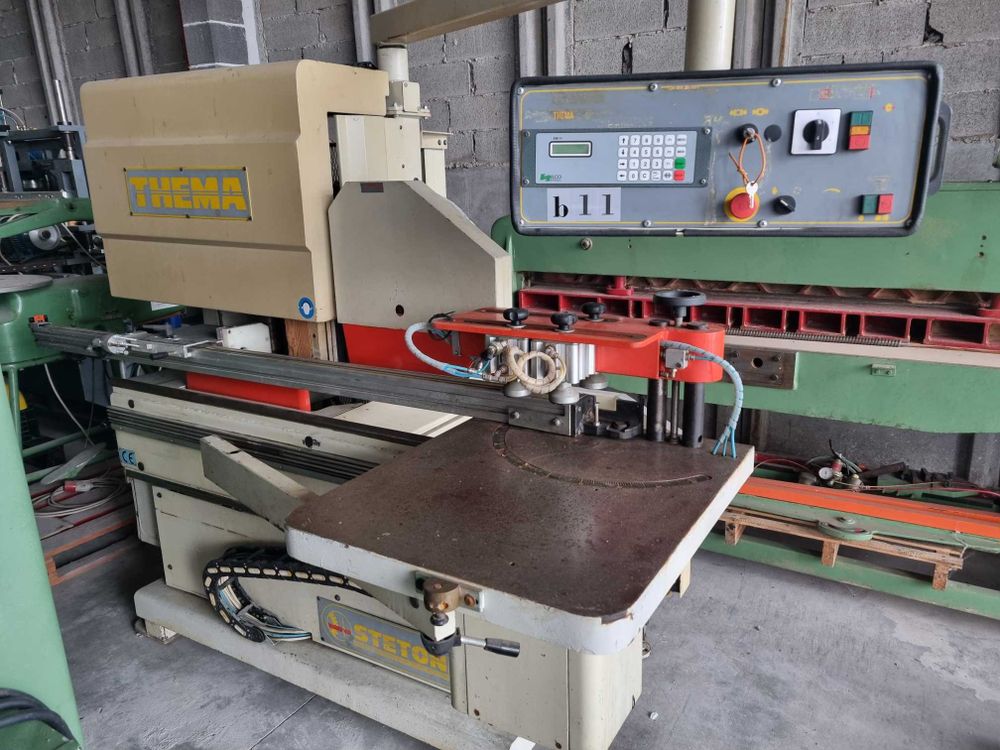

Steton THEMA H490 Programmable mono-spindle tenoning machine
Ref :
2757221-15-MT
Condition :
Used
Manufacturer :
Steton
Model :
THEMA H490
Short Description :
Programmable mono-spindle tenoning machine
Year(s) :
1997
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Programmable mono-spindle tenoning machine
max working height 120 mm
max tenon lenght 120 mm
tenoning carriage 700×600 mm controlled by inverter with tilting fence a double pneumatic hold-down
blade diameter 400 mm with mootr power 3 kw (4 hp)
vertical spindle diameter 50 mm and height 590 mm with motor power 9,2 kw (12,5 hp) and pnumatic anti-chipping device
electronic programmer Elco EM-11 with 99 programs storage
dimension for shipment 2200x1800x2000h mm
weight 1100 kg
