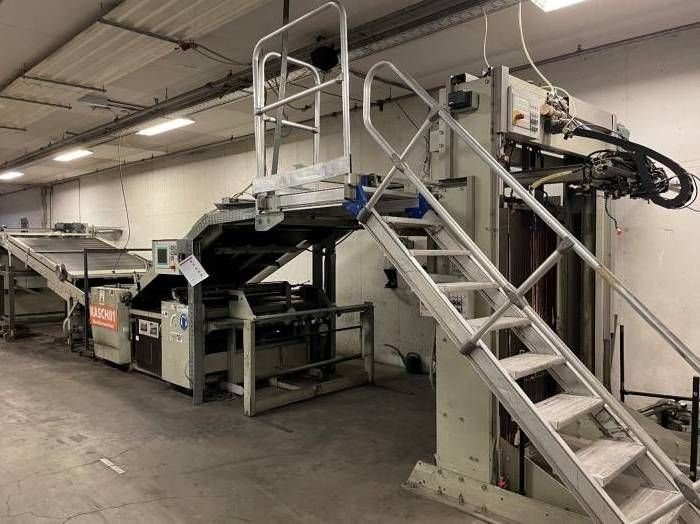

Stock 1620 Sheet-to-Sheet Laminating Machine

Machine consists of:
• Automatic printing and corrugated board sheet feeder
• Printing sheet feeder
• Belt table
• Precise registration of the glued carrier material
• Gluing unit
• Laminating unit
• Press carpet and pallet stacker
• Non-stop stack feeder / continuous mode for particularly high production speeds

Technical details:
Format:
Width min. 500 mm to max. 1,620 mm
Length min. 500 mm to max. 1,620 mm
Printing sheet thickness 120 - 800 g/m²

Carrier sheet thickness: Cardboard/board from 500 g/m²
Corrugated board up to 7 mm
Performance: Up to 8,000 sheets/hour with a format length of 500 mm
Performance:
Accuracy mode: Up to 3,700 Sheets per hour at a sheet length of 500 mm
Continuous mode (high performance): Up to 10,000 sheets per hour at a sheet length of 500 mm
Tolerances:
Accuracy mode: /- 0.5 mm
Continuous mode (high performance): /- 1.5 mm
Glue: Dispersion glue; viscosity: 3,000 to 4,000 mPas
