1/1

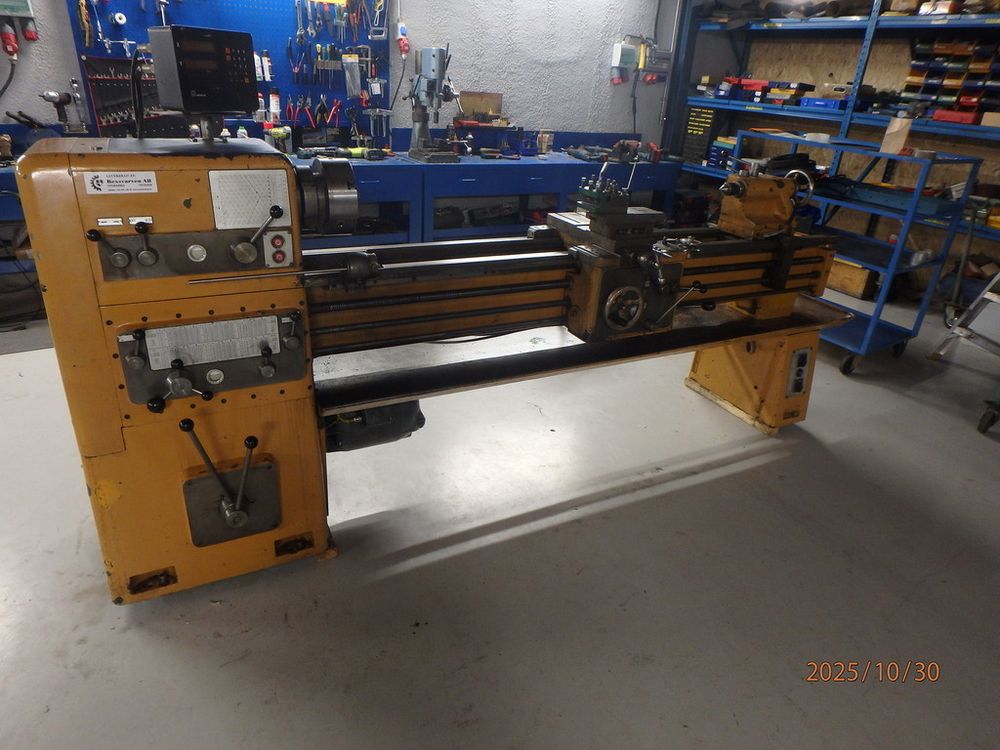

Storebro Engine Lathe 1130 rpm GS210
Ref :
2763278-3-MT
Condition :
Used
Manufacturer :
Storebro
Type :
Engine Lathe
Spindle Speed :
1130 rpm
Model :
GS210
Year(s) :
1965
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Centre height 210 mm
Centre distance 2000 mm
Spindle bore 56 mm
Swing over bed 430 mm
Swing over cross slide 250 mm
Spindle speed 25-1130 rpm
Spindle nose L1
Spindle movement 175 mm
Taper in tailstock MT4
Top slide movement 140 mm
Feed length 0,045-4,56 mm/rev
Cross feed 0,015-1,52 mm/rev
Rapid traverse
Motor power 7,5 kW
Total power requirement
Machine dimensions 3200x800x1300 mm
Machine weight 2150 kg
2-axis digital Heidenhain
Coolant system
Steady rest
Faceplate
Rear disk/backplate
