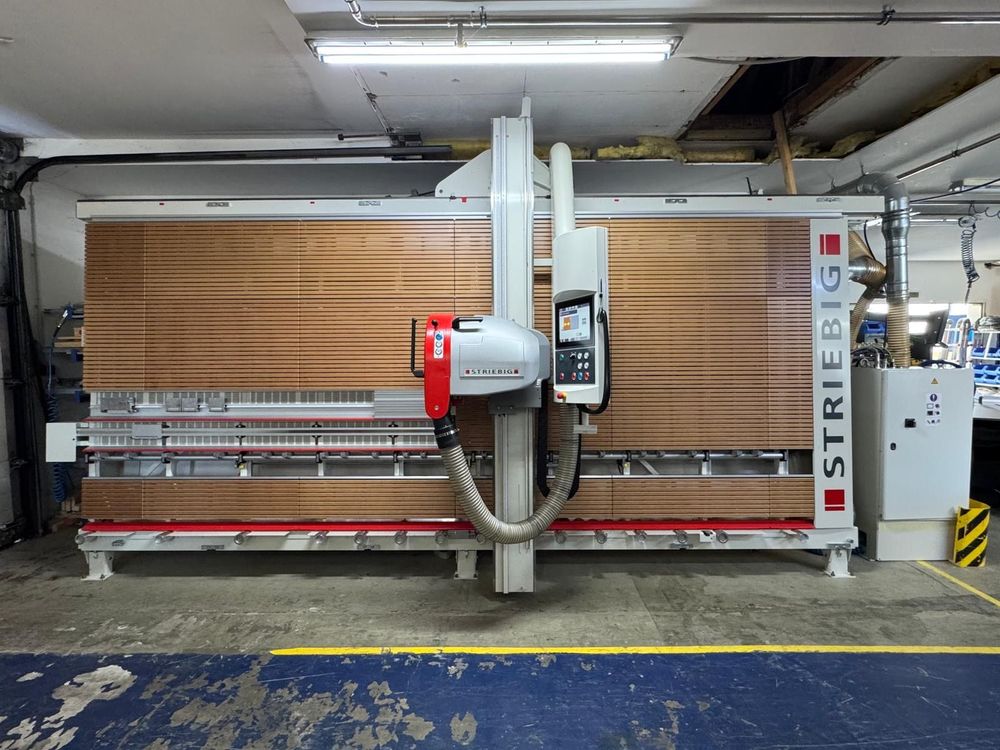

Striebig Control Version 18 5216

Saw Frame
• Machine manufactured with precision parts to 1/100 mm tolerance
• Solid, self-supporting, welded, torsion-resistant saw frame
• Full-surface support wall made of birch plywood with integrated small parts support
• Auxiliary stop profile with its own measuring tape and 3 auxiliary stops for repeat cuts
• Automatic detection of the center support
• Automatic roller locking during sawing

Saw Beam
• Sturdy, durable steel saw beam construction
• Automatic saw beam locking with cutting edge detection

Saw Unit
• Backlash-free, smooth-running guides
• Robust motor carriage bearings ensure high cutting precision
• Powerful, high-torque 5.5 kW (7.5 hp) motor
• Increased comfort thanks to largely automated operation
• Laser-guided indication of the horizontal cut
• Automatic motor carriage clamping

• Automatic plunge and swiveling of the saw motor
• Pneumatic clutch for easy Switch to manual operation
• SUPERSILENT sound insulation to reduce saw blade noise
• Electromagnetic motor brake

Control
• 12" touchscreen computer with optimal user guidance
• Multilingual user interface
• Tool database guarantees high flexibility and absolute repeatability
• Fully automatic sawing process
• Infinitely variable feed speeds 10-25 m/min
• Selectable sawing cycle
• Panel end detection
• Constant return speed
• Operating hours counter
• Network connectivity

Dimension setting
• Digital measuring system DMS.x (horizontal axis for vertical cuts)
• Electronic positioning system EPS.y incl. ABO (vertical axis for horizontal cuts)

Design, Ergonomics
• STRIEBIG's signature product design
• Multiple award winner (including the Swiss Design Prize)
• Functional and user-friendly ergonomics

Installation
• Wall or freestanding (optional) mounting Possible

Cutting length 4,300 mm
Cutting height (vertical cut) 2,160 mm
Cutting height (horizontal cut) 2,016 mm
Maximum cutting depth 80 mm
Minor cutting depth 4 mm (automatic feed)
Minor cutting depth 2 mm (manual feed)
Please refer to the brochures or installation plans for the exact installation dimensions.
