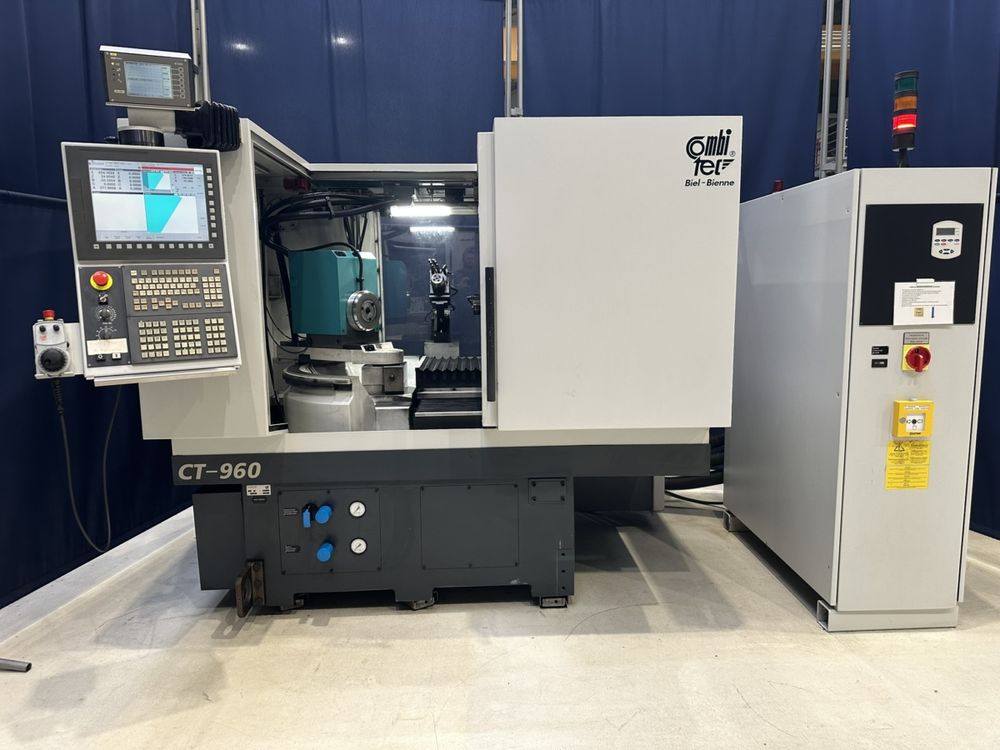

Studer COMBITECT CT960F

X-axis travel: 400 mm
X-axis resolution: 0.0001 mm
X-axis feedrate: 0–10,000 mm/min
Z-axis travel: 400 mm
Z-axis resolution: 0.0001 mm
Z-axis feedrate: 0–10,000 mm/min
B-axis travel: +60° to −91°
B-axis angular resolution (encoder): 0.0005°
B-axis drive resolution: 0.0001°
B-axis feedrate: 25°/s

CNC control: FANUC 320iA
HMI for FANUC 320iA
Workshop-oriented grinding cycles (DIN/ISO)
Mobile handwheel with axis selector
Feedrate override: 0–100%
Spindle speed override: 50–125%
Ethernet TCP/IP interface
Process monitoring and optimization system
Acoustic emission evaluation system with display
Automatic dressing unit with hydraulic swivel arm
Hydraulic swivel motion with adjustable speed
Fire suppression system

Internal diameter capacity: 999,999 mm
Grinding depth: 999,999 mm
Swing diameter: 999,999 mm

Internal grinding spindle 1 quantity: 2
Internal grinding spindle 1 housing diameter: 100 h5 mm
Internal grinding spindle 1 max speed: 90,000 rpm
Internal grinding spindle 1 power: 2.5/3.0 kW
Internal grinding spindle 1 spindle nose: D10/18
Internal grinding spindle 1 cooling: Water

Internal grinding spindle 2 quantity: 1
Internal grinding spindle 2 housing diameter: 80 h5 mm
Internal grinding spindle 2 max speed: 120,000 rpm
Internal grinding spindle 2 power: 0.8/1.1 kW
Internal grinding spindle 2 spindle nose: D06/12
Internal grinding spindle 2 cooling: Water

External grinding spindle type: MMO-100
External grinding spindle interface: HSK-C50
External grinding spindle diameter: 100 h5 mm
External grinding spindle max speed: 3,770 rpm
External grinding spindle power: 6.0/7.0 kW
Grinding wheel diameter: 125–200 mm
Grinding wheel width: 2–20 mm

Dressing spindle housing diameter: 72 h6 mm
Dressing spindle max speed: 16,000 rpm
Dressing spindle power: 400/500 W

Revolver positions: 4
Tool change time: 5 s
Maximum spindle diameter in revolver: 100 mm

Workpiece spindle max speed: 1,000 rpm
Workpiece spindle motor power: 1.8 kW

Measuring probe: Etamic C25
Longitudinal positioning probe included

Radius and taper grinding software
Contour grinding software G89
DXF import capability
Grinding cycle simulation and collision detection
CAD software for 2D drawing and DXF export
