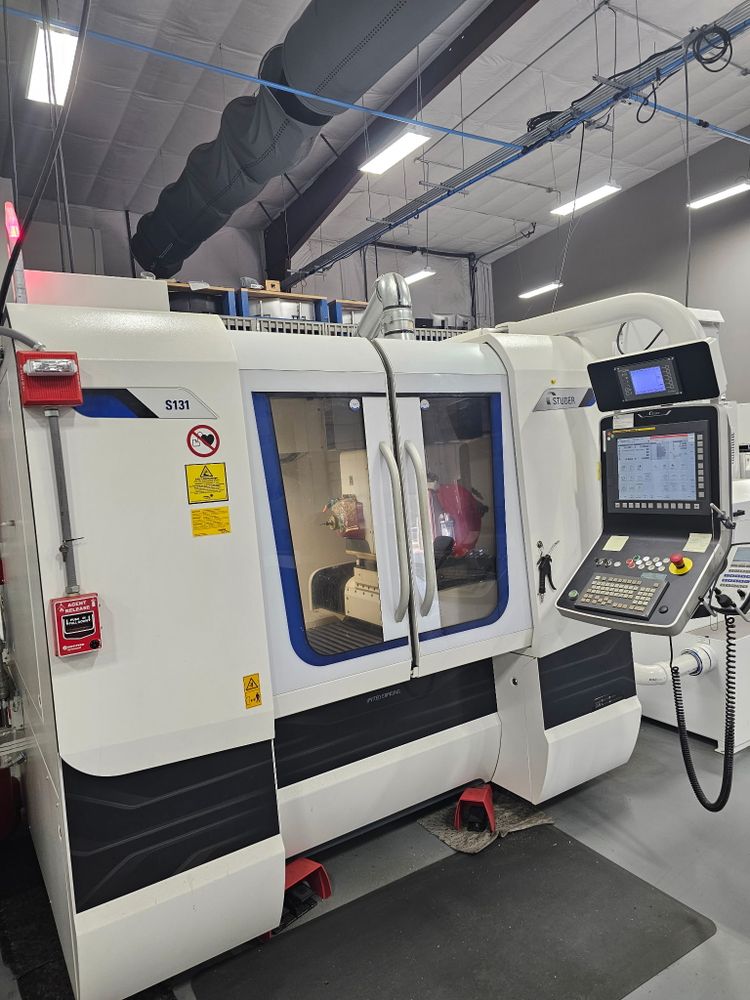

Studer S131R

X-Axis Travel 13.78″
Z-Axis Travel 15.75″
Swiveling range of workpiece table -60° to +91°
Swiveling range of tool table with B1-axis -50° to +280°
Max Swing 11.81″
Max Workpiece Weight 220 LBS
Max Workpiece Diameter (external) 6.3″
Max Workpiece Length 11.81″
Max Grinding Wheel Diameter 9.84″
Grinding length/diameter, external 4.7″/6.3″
Internal Grinding Spindles 24,000 – 120,000 rpm
External Grinding Wheel 10″ x 1″ x 2″
Spindle Arrangement Turret
Number of Spindles 4
Chuck Workhead High Precision 1-1200 RPM
Chuck Workhead Standard Version 1-1500 RPM
Spindle Bore 1.4″
Driving Power 4 HP
C-axis for form grinding Standard, indirect measuring system 0.0001°
Machine Weight 13,000 LBS
Fanuc 31i-Model B Control
External Grinding T1
Internal Grinding T2 60,000 RPM
Internal Grinding T3 with attachment for dia. 120mm
Internal Grinding T4 90,000 RPM
Internal Grinding T4 with attachment for dia. 100mm
Chuck Workhead MT5/A4
Rotary Dressing
Portable Operating Unit Studer PCU Terminal II with Graphics
RJ45 Ethernet Interface
Contact Detection
Length Positioning Probe
Machine Coolant Equipment & Accessories
Foot Pedal
TouchControl for Diameter
Non-round Software
United Grinding Digital Solutions/OPC-UA
Fire Suppression System
Coolant Filter for Oil
Coolant Filtration System and Mist Collection
