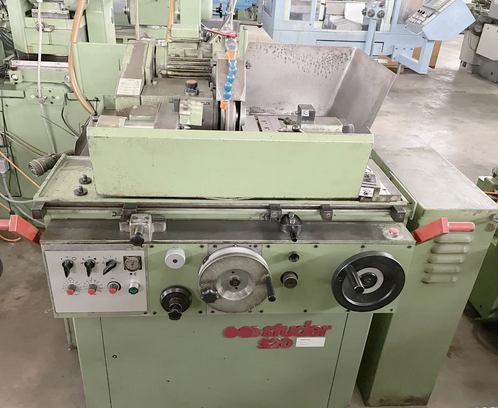

Studer S 20-OC

Centre Height: 80 mm
Distance Between Centres: 400 mm
Grinding Diameter: 80 mm
Grinding Length: 400 mm
Grinding Wheel Diameter: 300 mm
Grinding Wheel Width: 30 mm
Grinding Wheel Bore: 127 mm
Max Workpiece Weight: 20 kg
Angular Displacement: 30°
Workpiece Spindle Speed: 60–1200 RPM
Workpiece Spindle: Stepless
Workpiece Spindle Rotation: 90°
Spindle Taper: 2 CM
Tailstock Taper: 2 CM
Table Angular Adjustment: 30°
Table Speed: 100–3500 mm/min
Voltage: 380 V / 50 Hz / 3 Phase
Grinding Wheel Motor: 4.5 CV
Tailstock with Fine Adjustment
Coolant System
Safety Device
Weight: 1900 kg
Dimensions: 1500 x 1400 x 1600 mm
