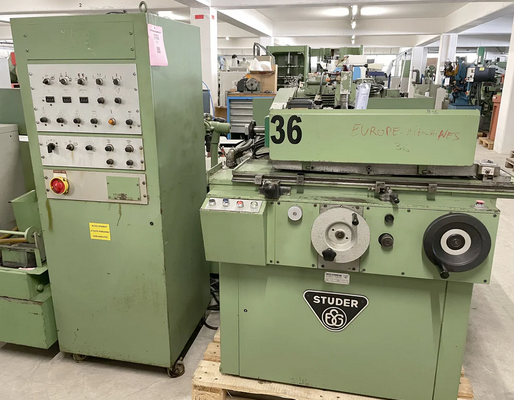

Studer S 20-OF

Centre Height: 80 mm
Distance Between Centres: 400 mm
Max Longitudinal Travel: 420 mm
Max Transversal Travel: 30 mm

Grinding Wheel Diameter: 350 mm
Grinding Wheel Width: 30 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Speeds (Stepless): 1600 – 2200 rpm
Peripheral Speed: 30 m/s

Workpiece Spindle Speed Steps: 4
Workpiece Spindle Speed: 80 – 800 rpm
Workpiece Spindle Swivelling Range: 0 – 90°

Table Angular Displacement: 30°
Table Speed (Stepless): up to 4 m/min

Inner Taper Type: W20
Spindle Taper: 4 CM

External Grinding Wheel Motor: 3 kW
Workpiece Spindle Motor: 1 kW

Voltage: 3×380 V 50 Hz
Air Connection: 5 bar

Machine Weight: approx. 1000 kg
Machine Dimensions: 1500 × 1100 × 1500 mm
Control Dimensions: 600 × 600 × 1700 mm

Coolant System
Paper Filtration System
Set of Collets
Without Tailstock
