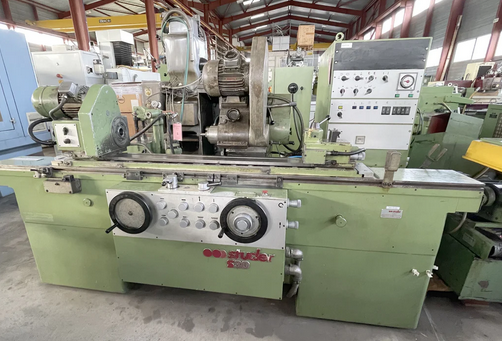

Studer S 30-12 F

Longitudinal Travel: 800 mm
Transversal Travel: 150 mm

Grinding Wheel Diameter: 450 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 127 mm
Wheel Speed: 1,350 – 2,220 rpm
Number of Speeds: 6

Workhead Speed: 30 – 675 rpm
Workhead Rotation: 90°

Center Height: 125 mm
Distance Between Centers: 1,025 mm
Max Workpiece Weight: 80 kg

Spindle Taper: 5 CM
Tailstock Taper: 3 CM
Table Swivel: +90° / 30°
Hydraulic Cross Travel: 40 mm

Grinding Motor Power: 6.25 kW
Internal Grinding Motor Power: 1 kW

Voltage: 380 V

Machine Dimensions: 2700 x 1400 x 1600 mm
Machine Weight: 2,500 kg

Measuring Instrument
Coolant System
Flange
Tool Cabinet
