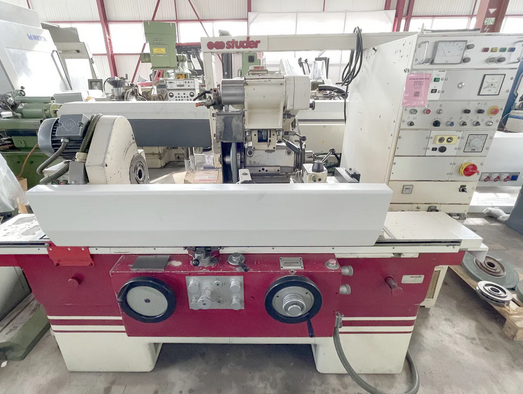

Studer S 30-12

Centre Height: 175 mm
Distance Between Centres: 700 mm
Max. Longitudinal Travel: 700 mm
Grinding Wheel Diameter: 400 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 127 mm
Workpiece Weight Capacity: 80 kg
Grinding Wheel Speeds: 1,500 – 2,400 RPM
Grinding Wheel Speed Steps: 6
Peripheral Speed: 35 m/s
Wheel Head Angular Displacement: 0 – 90°
Workpiece Spindle Speeds: 30 – 675 RPM
Workpiece Spindle Rotatable: 90°
Spindle Taper: 5 CM
Tailstock Taper: 3 CM
Table Angular Displacement: 8°
Table Speed: 6 m/min
Voltage: 3 x 380 V / 50 Hz
External Grinding Wheel Motor: 3 kW
Total Power: 13 kVA
Tailstock with Fine Adjustment
Internal Grinding Attachment
Internal Grinding Spindle Speed: 28,000 RPM
Redressing Device
Laterally Pivotable Dressing Device
Radius Redressing Device
Paper Filtration System
Set of Flanges
Feed SENSITRON
Grinding Wheel Guard
Machine Dimensions: 2200 x 1300 x 1800 mm
Control Dimensions: 900 x 500 x 1700 mm
