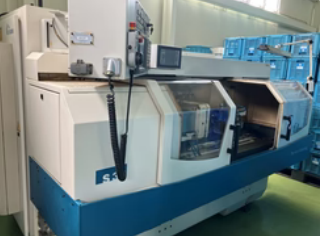

Studer S 33 CNC

Centre height: 175 mm
Distance between centres: 1000 mm
Max. workpiece weight on centres: 120 kg
Grinding wheel diameter: 500 mm
Grinding wheel width: 63 mm
Grinding wheel bore: 203 mm
Grinding wheel max. width: 80 mm
Rotatable grinding spindle head (B-axis): -15 / +195°
Peripheral speed: 44 / 35 m/s
Longitudinal travel: 285 mm
Transversal travel: 1150 mm
Workpiece spindle speed: 1 – 1500 t/min
Tailstock travel: 35 mm
Max. table angular displacement: 8.5°
Air connection: 5.5 bar
Voltage: 3 × 400 V, 50 Hz
Grinding spindle motor: 7.5 kW
Total power required: 20 kVA
Machine weight: 5000 kg
Overall dimensions (L × W × H): 2620 × 2090 × 2000 mm

Features:
GE FANUC Series 21i-TB control
Rotatable grinding head
Tailstock
