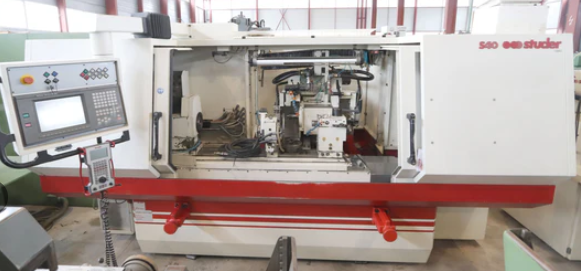

Studer S 40 CNC

GE Fanuc Series 16-GC Control
Centre Height: 175 mm
Distance Between Centres: 1000 mm
Maximum Workpiece Weight: 130 kg
Grinding Wheel Diameter: 400 mm
Grinding Wheel Width: 80 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Diameter: 400 mm
Grinding Wheel Width: 80 mm
Grinding Wheel Bore: 127 mm
Longitudinal Travel: 1050 mm
Transversal Travel: 275 mm
B-Axis Swivelling Range: 15° + 205°
B-Axis Resolution: 5°
Grinding Wheel Speeds: 1670 / 2110 RPM
Peripheral Speed: 35 m/s
Workpiece Spindle Speed: 30–750 RPM
Workpiece Spindle Rotation: 90°
Workpiece Spindle Taper: MT5
Workpiece Spindle Power: 1 kW
Tailstock Taper: CM3
Tailstock Travel: 35 mm
Maximum Table Angular Displacement: 8.5°
Air Connection: 5 bar
Workpiece Spindle Motor: 8 kW
Total Power Required: 30 kVA
Voltage: 400 V / 50 Hz
Machine Weight: 5100 kg
Machine Dimensions: 3750 × 1200 × 2300 mm
Internal Grinding Attachment
1 High-Speed Internal Grinding Spindle
Internal Grinding Spindle Speed: 60000 RPM
Lamp
Tailstock Fine Adjustment
Electronic Handheld Control
Hydraulic Tailstock Return
Feed Speed Longitudinal Axis: 0.0001–10000 mm/min
Feed Speed Transversal Axis: 0.0001–10000 mm/min
