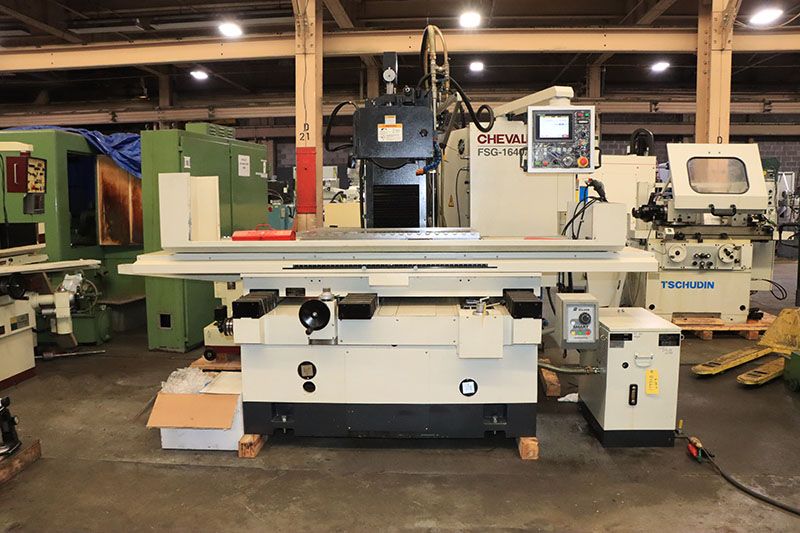

Chevalier FSG-1640ADIII

Max grinding capacity 16′′ × 40′′
Table size 15.75′′ × 39.38′′

Longitudinal travel (hydraulic) 41.31′′
Longitudinal travel (manual) 43.25′′

Cross travel (automatic) 16′′
Cross travel (manual) 18′′

Distance spindle center to table 24′′

Table speed (hydraulic) 16–82 FPM
Rapid traverse crossfeed 12 IPM

Crossfeed increment 1/8′′–2′′
Rapid crossfeed 25 IPM

Microfeed per revolution 0.0005′′
Microfeed per graduation 0.00005′′

Automatic incremental downfeed 0.00005′′–0.002′′

Spindle motor 5 HP
Grinding wheel 14′′ × 2′′ × 5′′

Machine weight 7,920 lbs
Machine dimensions 126′′ × 81′′ × 91′′

PLC touchscreen control (3-axis automatic grinding system)
AC servo control (elevating & cross axes)
Hydraulic table system
Automatic incremental downfeed system
Over-the-wheel dresser
Coolant system with paper filtration
Electromagnetic chuck (O.S. Walker Interloc)
Variable holding control (NeutroFier system)
Manual pulse generator (MPG)
Precision roller bearings (3 axes)
Hardened and ground guideways
Crossfeed ball screw
Elevating leadscrews hardened and ground
Wheelhead automatic retract system
Cycle interrupt and inspection mode
Spark-out cycles programmable (0–9)
