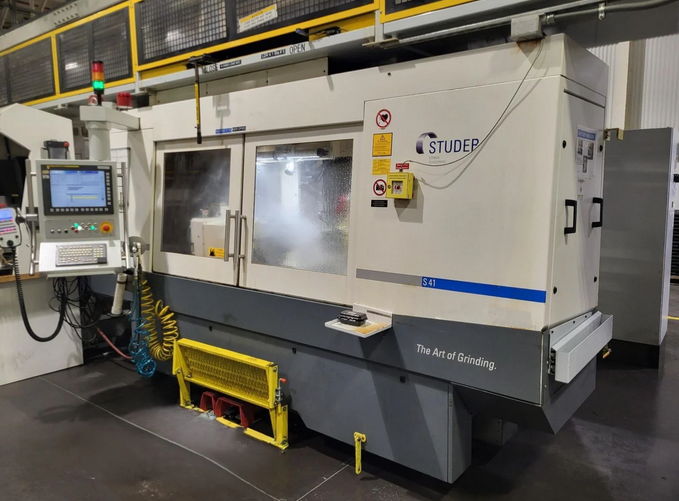

Studer S 41

Z-Axis Travel: 1150 mm
X-Axis Travel: 350 mm
Centre Height: 225 mm
Distance Between Centres: 1000 mm
Max Workpiece Diameter: 550 mm
Max Workpiece Height: 1000 mm
Workpiece Weight: 250 kg
Grinding Wheel Diameter: 500 mm
Grinding Wheel Width: 32–80 mm
Grinding Spindle Head Peripheral Speed: 50 / 80 m/s
Grinding Spindle Head Swivel Range (B Axis): -45° to +225°
B Axis Resolution Max: 0.0005°
Internal Grinding Spindle Bore: 120 mm
Internal Grinding Spindle Speeds: 24,000 to 42,000 t/min
Workpiece Spindle Motor: 15 kW
Tailstock Spindle Stroke: 60 mm
Tailstock Spindle Diameter: 60 mm
Voltage: 3x400 V / 50 Hz
Air Connect: 5 bar
Machine Weight: 9000 kg
Control: GE FANUC Series 31i-Model A
High-Resolution C-Axis
B1+B2 Axes
Coolant System
Internal Grinding Attachment, 2 Spindles
Redressing Device
Lamp
Status Light
PC System
Electronic Handheld Control
Foot Pedal
External Grinding
Internal Grinding
Y-Axis
