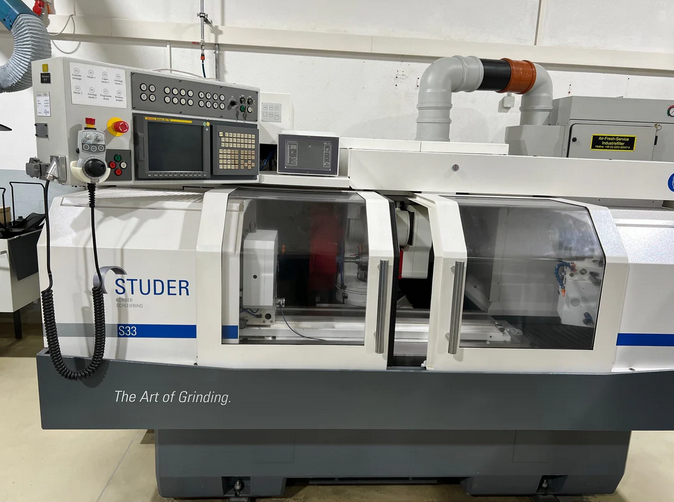

Studer S33 CNC

Centre Height: 175 mm
Distance Between Centres: 650 mm
Workpiece Weight on Centres (max): 120 kg
Grinding Wheel Diameter: 500 mm
Grinding Wheel Width: 63 mm
Max Grinding Wheel Width: 80 mm
B Axis Swivelling Range (Automatic): -15° / +195°
B Axis Resolution: 1°
Peripheral Speed: 44 / 35 m/s
Longitudinal Slide Travel: 800 mm
Longitudinal Feed Range: 0.001–10000 mm/min
Longitudinal Scale Resolution: 0.0001 mm
Transversal Slide Travel: 285 mm
Transversal Feed Range: 0.001–5000 mm/min
Transversal Scale Resolution: 0.0001 mm
Work Spindle Speed Range: 1–1500 rpm
C Axis Resolution: 0.0001°
Spindle Taper: MT5
Tailstock Taper: 3CM
Tailstock Barrel Travel: 35 mm
Tailstock Spindle Diameter: 50 mm
Max Table Angular Displacement: 8.5°
Air Connection: 5.5 bar
Voltage: 3×400V, 50 Hz
Grinding Spindle Motor: 7.5 kW
Total Power Requirement: 20 kVA
Machine Weight: 5000 kg
Machine Dimensions (L×W×H): 2620 × 2090 × 2000 mm

Accessories / Features
GE Fanuc Series 21i-TB Control
Thread Grinding Cycles
High-Resolution C Axis
Coolant System
Paper Filtration System
B Axis
Redressing Device with Diamond
Hydraulic Swivelling Redressing Device
Internal Grinding Attachment
Internal Grinding Wheel Speed: up to 40000 rpm
Work Lamp
Tailstock with Fine Adjustment
Oil Mist Extractor (Air-Fresh-Service)
Electronic Handwheel
DITTEL Sensitron Proximity System
