Studer S33

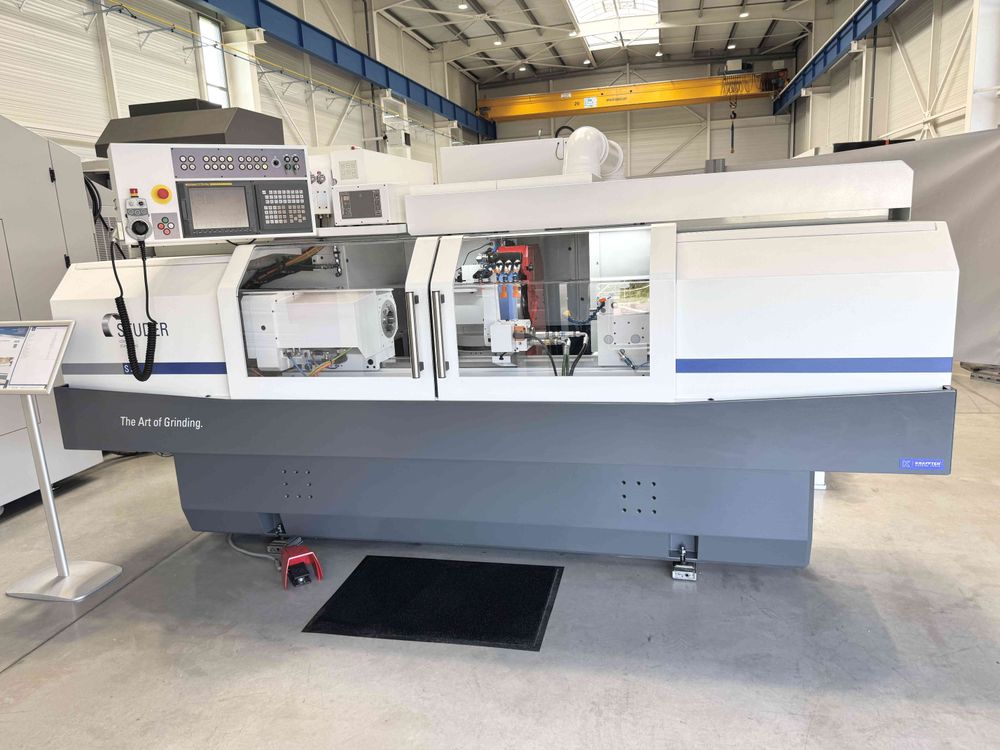

STUDER S 33 - CNC ID / OD cylindrical grinder


TECHNICAL CHARACTERISTICS:

Year of manufacturing : 2006
Year of rebuild : 2025

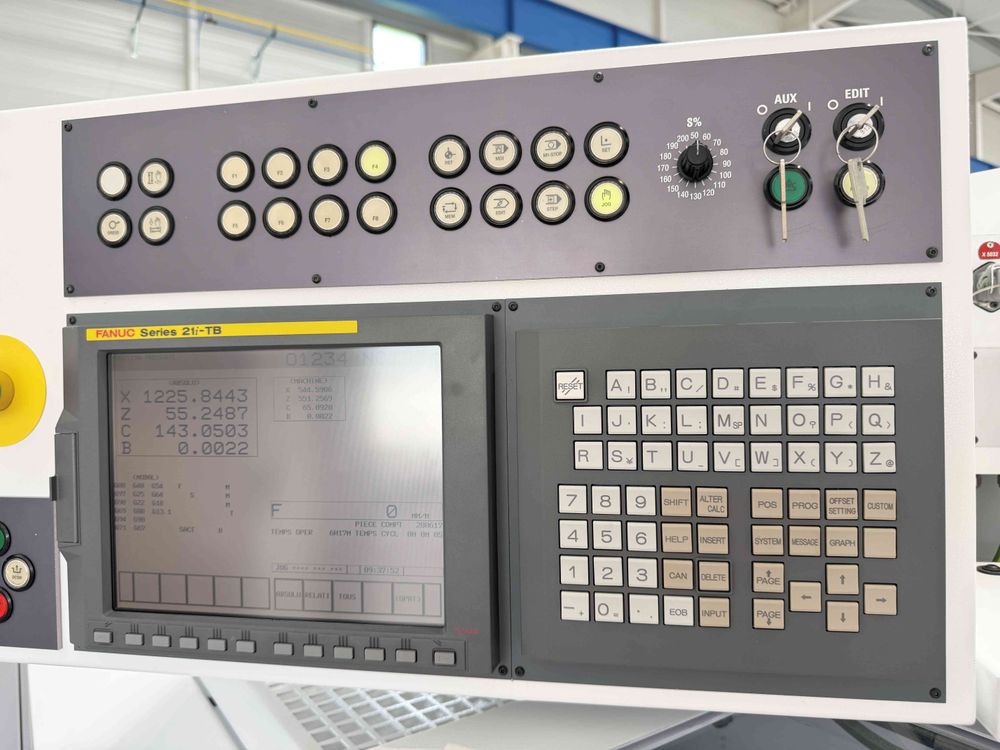

CNC control : FANUC 21i-TB
Centre distance : 1000 [mm]
Height of centers : 175 [mm]
Stroke X axis : 285 [mm]
Min. Stroke speed X axis : 0.001 [mm/min]
Max. Stroke speed X axis : 5000 [mm/min]
Resolution X axis : 0.0001 [mm]
Stroke Z axis : 1150 [mm]
Min. Stroke speed Z axis : 0.001 [mm/min]
Max. Stroke speed Z axis : 10000 [mm/min]
Resolution Z axis : 0.0001 [mm]
B axis swivelling stroke : -15 [°] / +195 [°] [°]
B axis indexing precision : Hirth 1 [°]
Automatic B axis : Yes

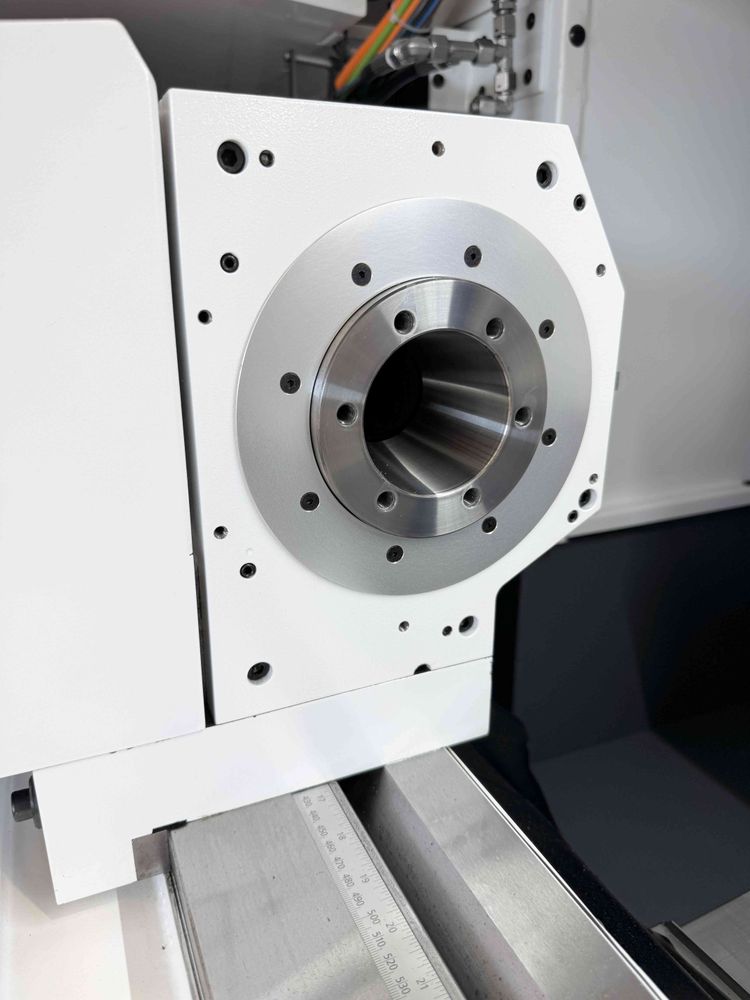

Workpiece spindle nose : ISO 50
Workpiece spindle max. speed : 1500 [rpm]
Type of attachment tailstock : MT3
Tailstock quill stroke : 35 [mm]
Tailstock quill diameter : 50 [mm]
Tailstock fine adjustment : +/- 40 [µm]


EQUIPMENT INCLUDED:

x1 internal grinding electrospindle FISCHER type MFM-1224/42 HJND-21 - speed: 42000 [rpm]
x1 cooling unit for internal grinding spindle
x1 automatic B axis - Hirth 1 [°]
x1 MOVOMATIC C25 part probe
x1 DITTEL SENSITRON 2 acoustic monitoring system

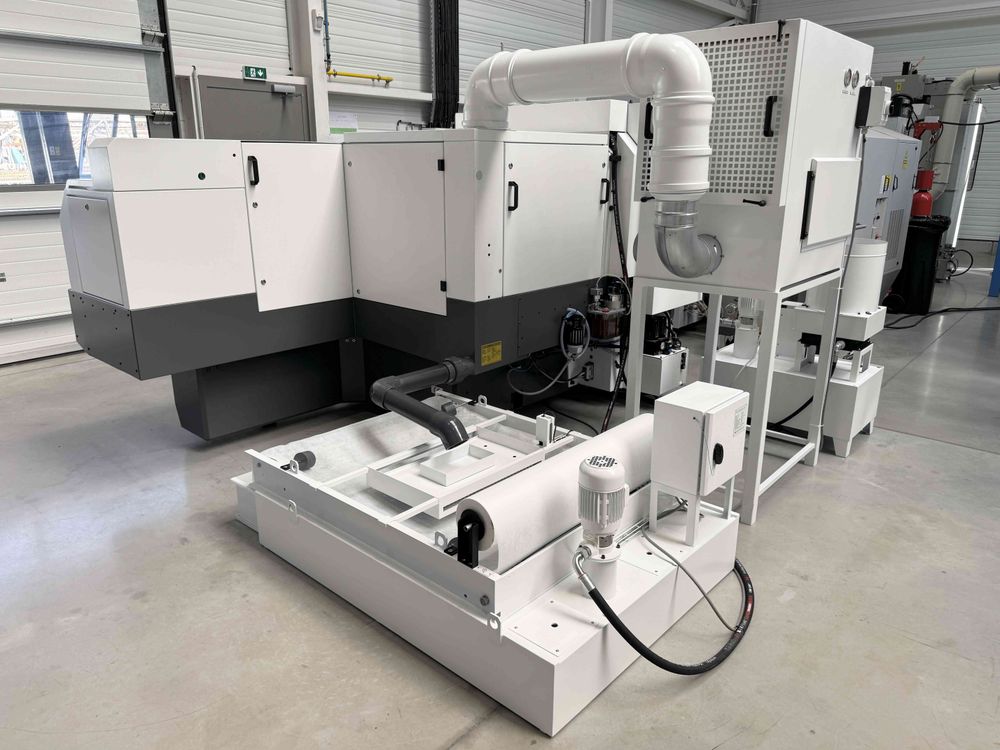

x1 ARO TECHNOLOGIES AG paper tape filtration device
x1 ABSOLENT AB oil mist extraction unit type ODF 1000c
x1 electric cabinet air conditioner
x1 set of user manuals (English, French and German)


Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
