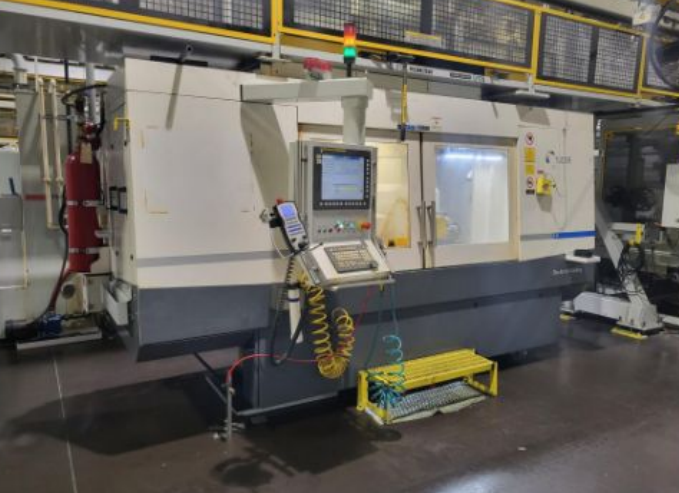

Studer S41

Center Height 225 mm
Max Workpiece Diameter 550 mm
Z Axis Travel 1150 mm
X Axis Travel 350 mm
Workpiece Height 1000 mm
Tailstock Spindle Stroke 60 mm
Tailstock Spindle Diameter 60 mm
Grinding Wheel Diameter 500 mm
Grinding Wheel Width 100 mm
Grinding Spindle Head Swivelling Range -45 to +225°
Grinding Wheel Peripheral Speed 50 / 80 m/s
Grinding Spindle Speed 0–4500 t/min
Workpiece Spindle Motor 15 kW
Voltage 3×400 V 50 Hz
Air Supply 5 bar
Machine Weight 9000 kg
High-Resolution C-Axis
Axes B1 + B2
Coolant System
Internal Grinding Attachment
Number of Spindles 2
Lamp
Status Light
PC System
Electronic Handheld Control
Foot Pedal
