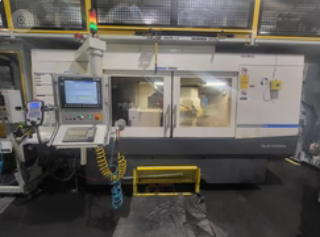

Studer S41

Centre height: 275 mm
Distance between centres: 1000 mm
Max. workpiece diameter: 550 mm
Z-axis travel: 1150 mm
X-axis travel: 350 mm
Max. workpiece height: 1000 mm
Max. workpiece weight: 250 kg
Grinding wheel diameter: 500 mm
Grinding wheel width: 100 mm
Grinding spindle head swivel range: -45 / +225°
Grinding wheel peripheral speed: 50 / 80 m/s
Grinding spindle speeds: 0 – 4500 t/min
Tailstock stroke: 60 mm
Tailstock spindle diameter: 60 mm
Air connection: 5 bar
Voltage: 3 × 400 V, 50 Hz
Workpiece spindle motor: 15 kW
Machine weight: 9000 kg

Features:
GE FANUC Series 31i-Model A control
High-resolution C-axis
B1 + B2 axes
Coolant system
Internal grinding attachment, 2 spindles
Lamp
Status light
PC system
Electronic handheld control
Foot pedal
