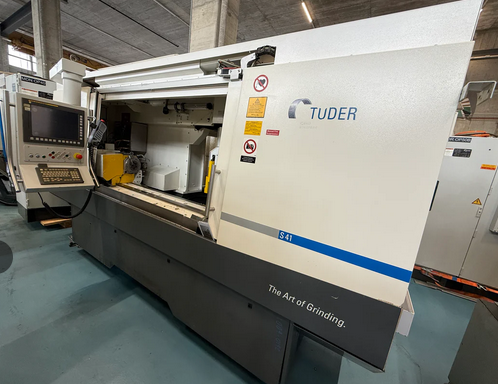

Studer S41

Z axis travel 1150 mm
X axis travel 350 mm
C axis high-resolution
B axis swiveling range -45° to 225°
GE FANUC Series 31i-Model A control
Coolant system
Internal grinding attachment
2 internal grinding spindles
PC system
Electronic handheld control
Foot pedal
Center height 225 mm
Distance between centers 1000 mm
Max workpiece diameter 550 mm
Workpiece height 1000 mm
Workpiece weight 250 kg
Workpiece spindle speed 0–4500 rpm
Workpiece spindle motor 15 kW
Grinding wheel size 500 × 100 mm
Grinding wheel speed 50 / 80 m/s
Internal grinding spindle speed 24000–42000 rpm
B axis resolution 0.0005°
Tailstock stroke 60 mm
Tailstock spindle diameter 60 mm
Air requirement 5 bar
Power supply 400 V 3-phase 50 Hz
Machine weight 9000 kg
Lamp
Status light
Redressing device
