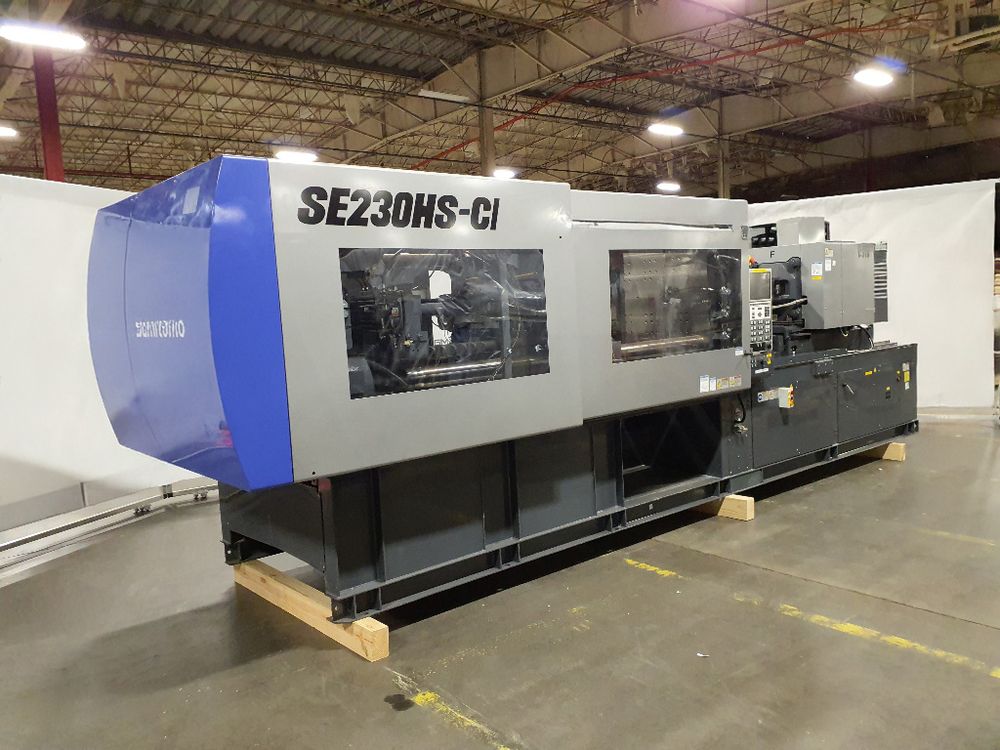

Sumitomo SE230HS-CI 253 T

Clamping force: up to 253 tons (2,250 kN)

Mold space:
-Minimum: 8.27 inches
-Maximum: 22.05 inches
-Maximum open daylight: 42.13 inches

Distance between tie-bars:
-Length: 36.22 inches
-Width: 22.05 inches
Maximum mold open/close: 51.18 inches per second
Maximum opening stroke: 20.08 inches
Locating ring diameter: 4 inches

Ejector:
-Pattern: Center, 7 inches (5 points x 2)
-Stroke: 5.91 inches
-Force: 4.4 tons
Maximum mold weight on moving platen: 1,102 x 2 pounds

Injection units C510 and C360:
-Screw diameters: 40 mm and 25 mm
-Screw stroke: 6.3 inches
-Maximum injection speed: 11.81 inches per second
-Maximum screw speed: 400 rpm
-Nozzle contact force: 2.76 tons
-Injection unit stroke: 17.32 inches
-Hopper capacity: 1,830 x 2 cubic inches

Overall dimensions:
-Length: 252 inches
-Width: 70 inches
-Height: 79 inches
Electrical: 3 Phase, 60 Hz, 230 Volts
Machine weight: approximately 37,400lbs
