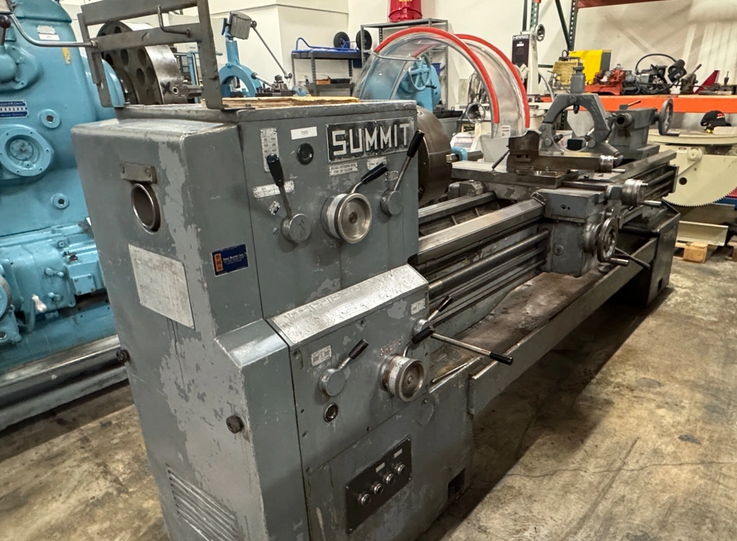

Summit Engine Lathe 1400 rpm 20-4 X 80

Swing: 20.25"
Swing Over Gap: 27.625"
Swing Over Cross Slide: 11.875"
Distance Between Centers: 80"
Spindle Speed: 11.5 - 1400 rpm
Spindle Bore: 4.125"
Spindle Nose: D1-8
Threads: 1/4 - 60 TPI
Metric Threads: 0.5 - 120
Longitudinal Feed: 0.00145 - 0.44474 in/rev
Cross Feed: 0.0007 - 0.22237 in/rev
Cross Slide Travel: 11.375"
Compound Travel: 5.375"
Tailstock Travel: 9.5"
Tailstock Taper: MT4
Bed Width: 15.75"
Motor Power: 10 hp
12" 3-Jaw Chuck
Inch / Metric Threading
Hardened and Ground Bed Ways
Taper Attachment
Thread Dial
Rapid Traverse
Two Speed Tailstock
Forced Lubrication
Coolant System
Full Length Splash Guard
