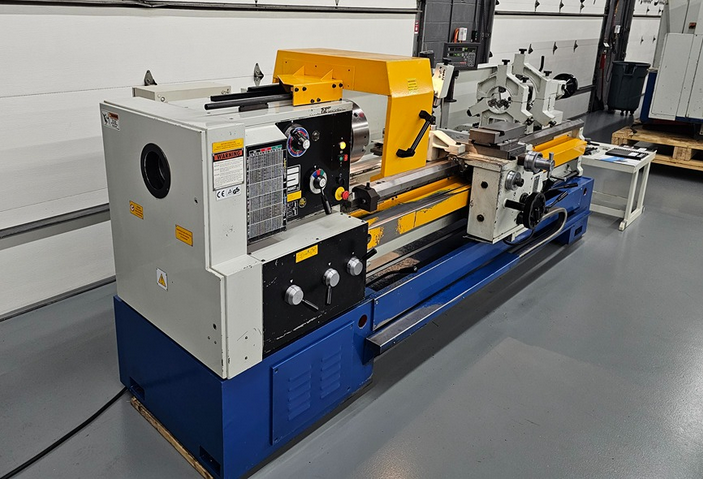

Summit Engine Lathe 1400 RPM 20X80B

Swing over bed: 20 1/4 in
Distance between centers: 80 in
Swing over cross slide: 13 1/4 in
Swing over gap: 30 in
Length of gap: 15 in
Cross slide travel: 11 1/2 in
Compound rest travel: 5 in
Bed width: 16 in
Spindle bore: 4 1/8 in
Spindle taper: Morse #6
Spindle speeds: 14 – 1400 RPM
Number of spindle speeds: 15
Spindle nose: D1-8 camlock
Tailstock taper: Morse #5
Tailstock quill travel: 9 1/2 in
Threading range inch: 1/4 – 60 TPI
Threading range metric: 0.5 – 120 mm
Feeds inch: 0.0015 – 0.040 IPR
Feeds metric: 0.125 – 30 mm/rev
Main motor power: 10 HP
Electrical requirement: 220 V 3 phase
Weight: 7,500 lb
Machine dimensions: 136 in L x 50 in W x 51 in H
4 way rapid traverse
2 axis Newall DRO
Built-in inch / metric threading
Taper attachment
Taper range: ±10°
Maximum taper turning length per setting: 16 in
2 steady rests
Follow rest
Thread dial
Headstock center taper
Coolant system
3 jaw chuck
Carriage stop
Work light
Full length splash guard
Chuck guard with wired safety lock
Operation manual
Maintenance manual
