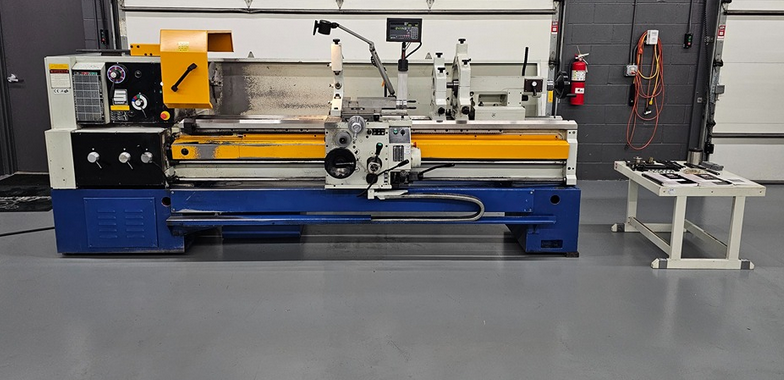

Summit Engine Lathe 1400 RPM 20X80B

2 Axis Newall DRO
4 Way Rapid Traverse
Inch / Metric Threading
Thread Dial
Coolant System
Taper Attachment
Taper Adjustment Range: ±10°
Maximum Turning Length per Taper Setting: 16"
Headstock Center Taper
Carriage Stop
Work Light
Full Length Splash Guard
Chuck Guard with Safety Lock
Owners Manuals
Bar Capacity: 4-1/8"
Swing Over Bed: 20-1/4"
Swing Over Cross Slide: 13-1/4"
Swing Over Gap: 30"
Distance Between Centers: 80"
Gap Length: 15"
Spindle Nose: D1-8 Camlock
Spindle Taper: Morse #6
Spindle Speed Range: 14 – 1400 RPM
Tailstock Taper: Morse #5
Tailstock Travel: 9-1/2"
Longitudinal Feed Range: 0.0015 – 0.040 IPR
Metric Feed Range: 0.125 – 30 mm/rev
Inch Thread Range: 1/4" – 60 TPI
Metric Thread Range: 0.5 – 120 mm
Cross Slide Travel: 11-1/2"
Compound Rest Travel: 5"
Bed Width: 16"
Main Motor Power: 10 HP
Voltage: 220 V
Phase: 3 Ph
3 Jaw Chuck
2 Steady Rests
Follow Rest
Machine Dimensions: 136" x 50" x 51"
Machine Weight: 7500 lbs
