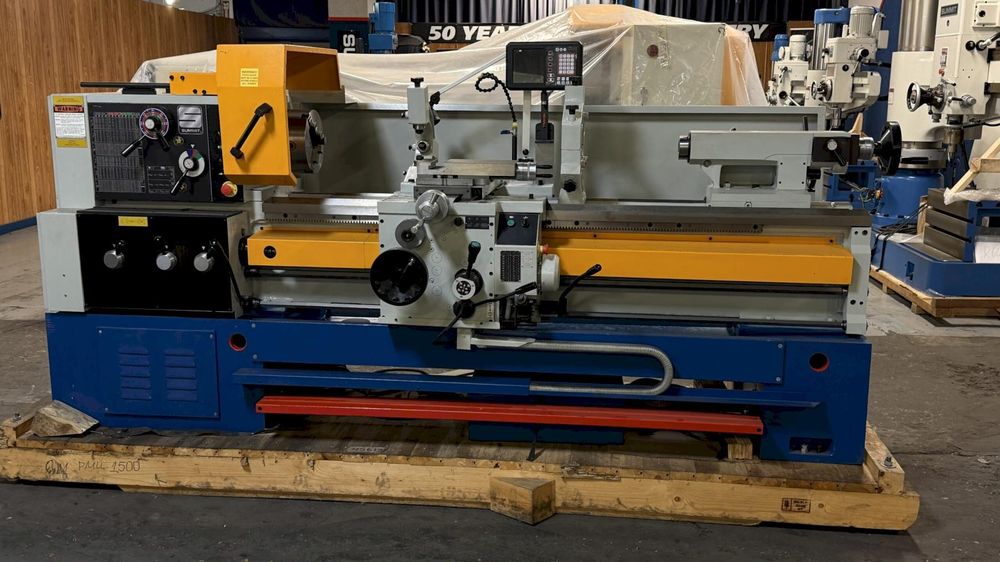

Summit Engine Lathe 2000 rpm 16-3x60

Turning length: 60 in
Turning diameter over bed: 18 in
Swing over cross slide: 9.5 in
Swing over gap: 26 in
Gap length: 15 in
Maximum workpiece weight at headstock: 350 lb
Maximum workpiece weight between centers: 1500 lb
Maximum workpiece weight with steady rest: 3000 lb
Spindle bore: 3 in
Spindle nose: D1-8 Camlock
Headstock taper: MT6
Spindle speed: 20–2000 rpm
Inch threads: 1/4–60 TPI
Metric threads: 0.5–120 mm
Module threads: 0.125–30
Diametral pitch: 1–240
Longitudinal feed: 0.00145–0.44474 in/rev
Cross feed: 0.0007–0.22237 in/rev
Leadscrew: 2 in, 2 TPI
Feed rod diameter: 1 in
Cross slide travel: 12.25 in
Compound rest travel: 5.375 in
Tailstock quill travel: 9.5 in
Tailstock quill diameter: 3.5 in
Tailstock taper: MT5
Bed width: 15.75 in
Bed depth: 16.875 in
Bed hardness: Rockwell C 42–48
Maximum taper angle: 10°
Maximum turning length per setting: 15.75 in
Main motor: 10 hp
Coolant pump: 0.25 hp
Steady rest capacity: 0.5–6.125 in
Follower rest capacity: 0.5–7.875 in
Voltage: 220/440 V, 3-phase, 60 Hz
Weight: 6600 lb
Machine dimensions: 134 × 48 × 60 in
3 in spindle bore
Inch/metric threading with single lever
Cuts inch and metric threads without change gears
Hardened and ground bedways
Forced lubrication
Removable gap
Mechanical disc clutch
Precision 3-bearing spindle
Crossfeed and threading safety interlock
Feed reversing at apron
4-way rapid traverse
Single lever feed and rapid control
Two-speed tailstock
Steady rest
Follower rest
Thread dial
Coolant system
Taper attachment
12 in 3-jaw chuck
Carriage stop
Work light
Full-length splash guard
Service wrenches and spanners
Newall 2-axis digital readout
