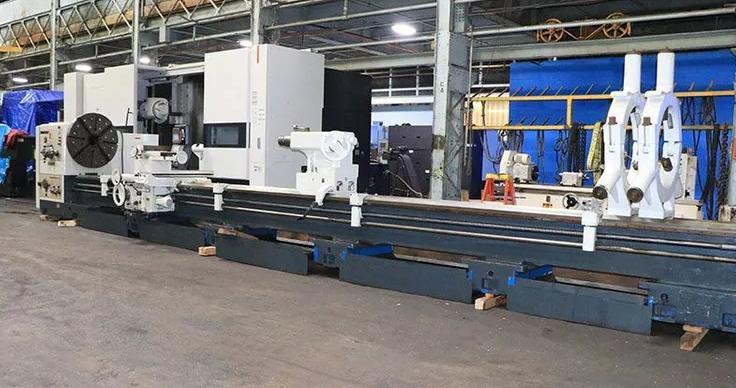

Summit Engine Lathe 500 RPM 50-R

SUMMIT 50-R
Year: 1978

Swing over bed ways 51-3/16"
Swing in removable gap 61-21/64"
Swing over cross slide 35-7/16"
Distance between centers 360"
Hole thru spindle 6.1"
Width of bed 23-5/8"
Spindle nose A2-11
Spindle speed range 6 - 500 RPM
Longitudinal feed range .0014 - .360 IPR
Cross feed range .0008 - .180 IPR
Inch threading range .5 - 84 TPI
Metric threading range .52 - 56 mm
Tailstock spindle diameter 6-1/8"
Tailstock spindle travel 15-3/4"
Tailstock spindle taper #6MT
Approximate floor space 476"L x 63"W x 93"H
Approximate weight 38,500 LBS
Hardened & ground bedways
Faceplate
(2) 26" capacity roller type steady rests
Taper through power compound
Power rapid traverse
Live center
Tailstock
Thread dial indicator
Coolant system with removable chip pans
30 horsepower main motor
