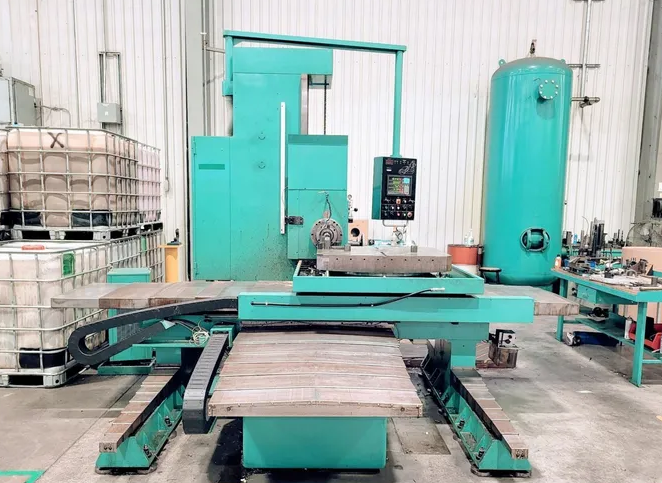

Summit HBM-110 4.3" 1500 RPM

SUMMIT HBM-110
2014

Spindle diameter 4.3"
Spindle taper #50
Spindle speed 20–1500 RPM
X-axis travel 63"
Y-axis travel 39.4"
W-axis (saddle) travel 49.2"
Z-axis (spindle) travel 16"
Feed rate (X, Y, W) 0.118–37.4 IPM
Rapid traverse (X, Y, W) 0.118–15.75 IPM
Rotary table size 31.5" x 39.4"
Table width 34.5"
Table length 39.4"
Maximum workpiece weight 5500 lbs
Table height from floor 49"
Main motor 20 HP
Overall dimensions 157" x 169" x 120" H
Machine weight 27,500 lbs
#50 taper power drawbar
Rotary table
NEWALL four-axis digital readout
Hardened and ground bedways
Ball screws on X and W axes
Fully automatic lubrication system
Rapid traverse in all feed directions
Steel telescopic way covers on X and W axes
Hydraulic clamping on X, Y, and W axes
20 HP spindle motor
