Summit HBM-110 Spindle diameter 4.3″ 1500 rpm

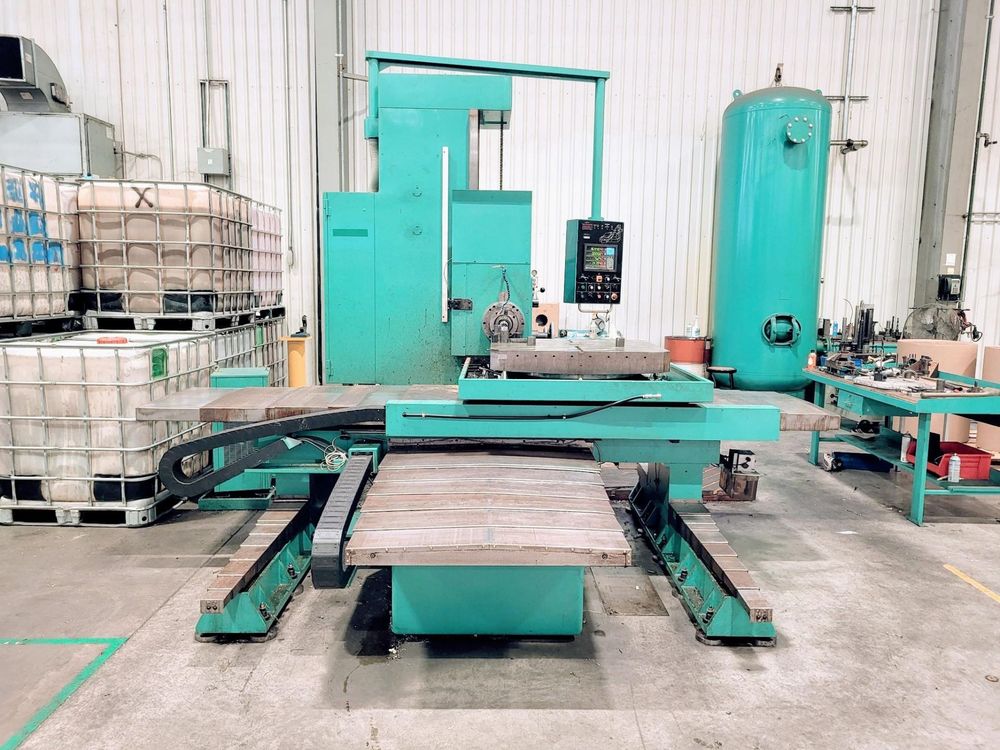

SUMMIT HBM-110
2014

Spindle diameter 4.3″
Spindle taper #50
Spindle speed range 20 – 1500 rpm
Vertical headstock travel (Y-axis) 39.4″
Cross travel (X-axis) 63″
Saddle travel (W-axis) 49.2″
Spindle travel (Z-axis) 16″
Feed range X/Y/W 0.118 – 37.4 ipm
Rapid traverse X/Y/W 0.118 – 15.75 ipm
Rotary table size 31.5″ x 39.4″
Maximum workpiece weight 5500 lbs
Table height from floor 49″
Spindle motor 20 hp
Machine dimensions 157″ x 169″ x 120″ h
Machine weight 27500 lbs
Power draw bar
Rotary table
Newall four-axis digital readout
Hardened and ground bedways
Ball screws on X and W axis
Automatic lubrication system
Rapid traverse in all feed directions
Telescoping way covers on X and W axis
Hydraulic clamping on X, Y, and W axis
20 hp spindle motor
