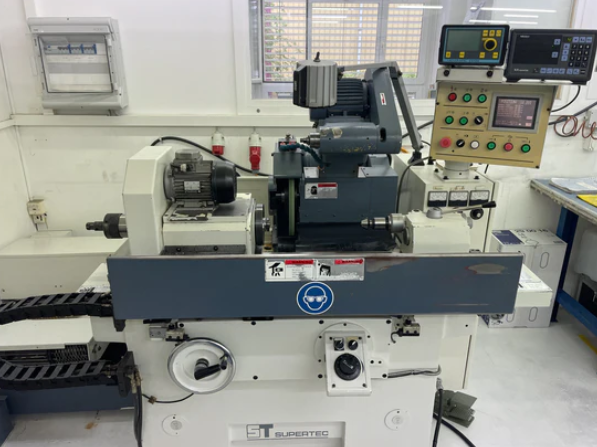

Supertec G20P-45CII

Centre height: 110 mm
Distance between centres: 500 mm
Swing diameter: 200 mm
Grinding diameter: 200 mm
Grinding wheel diameter: 305 mm
Grinding wheel width: 25 mm
Grinding wheel bore: 76 mm
Workpiece weight max: 80 kg
Grinding wheel speed: 2200 rpm
Internal grinding spindle speed: 14000 rpm
Spindle taper: 3 CM
Collet type: W20
Tailstock taper: 3 CM
Table angular displacement: ±7°
Voltage: 380 V
Machine weight: 2000 kg
Machine length: 1600 mm
Machine width: 1500 mm
Machine height: 1600 mm
Digital readout axes: 1
Tailstock with fine adjustment
Internal grinding attachment
Paper filtration system
Lamp
