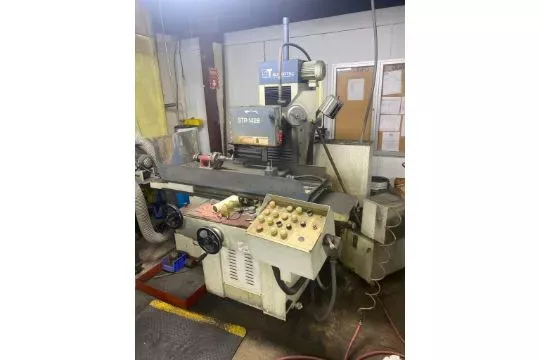

Supertec STP1428A

Machinery, Inc.

Table working surface (W×L): 12 in × 24 in
Grinding width capacity: 12 in
Grinding length capacity: 26 in
Spindle center to table height (max): 20 in
Table load capacity (max): 880 lb
Table longitudinal travel, hydraulic: 26 in
Table longitudinal travel, manual: 28 in
Table cross travel: 14 in
Grinding wheel diameter: 12 in
Grinding wheel width: 1.25 in
Grinding wheel hole diameter: 3 in
Spindle speed: 1710 RPM
Longitudinal feed rate range: 10–82 FPM
Crossfeed automatic feed: 0.02–0.32 in IPR
Rapid vertical traverse: 7.5 IPM
Spindle motor power: 3 hp
Hydraulic motor power: 2 hp
Machine dimensions (L×W): 78 in × 89 in
Machine height: 89 in
Machine weight: 4510 lb
Electro-magnetic chuck 12 in × 24 in included
Automatic lubrication system included
Coolant system included
