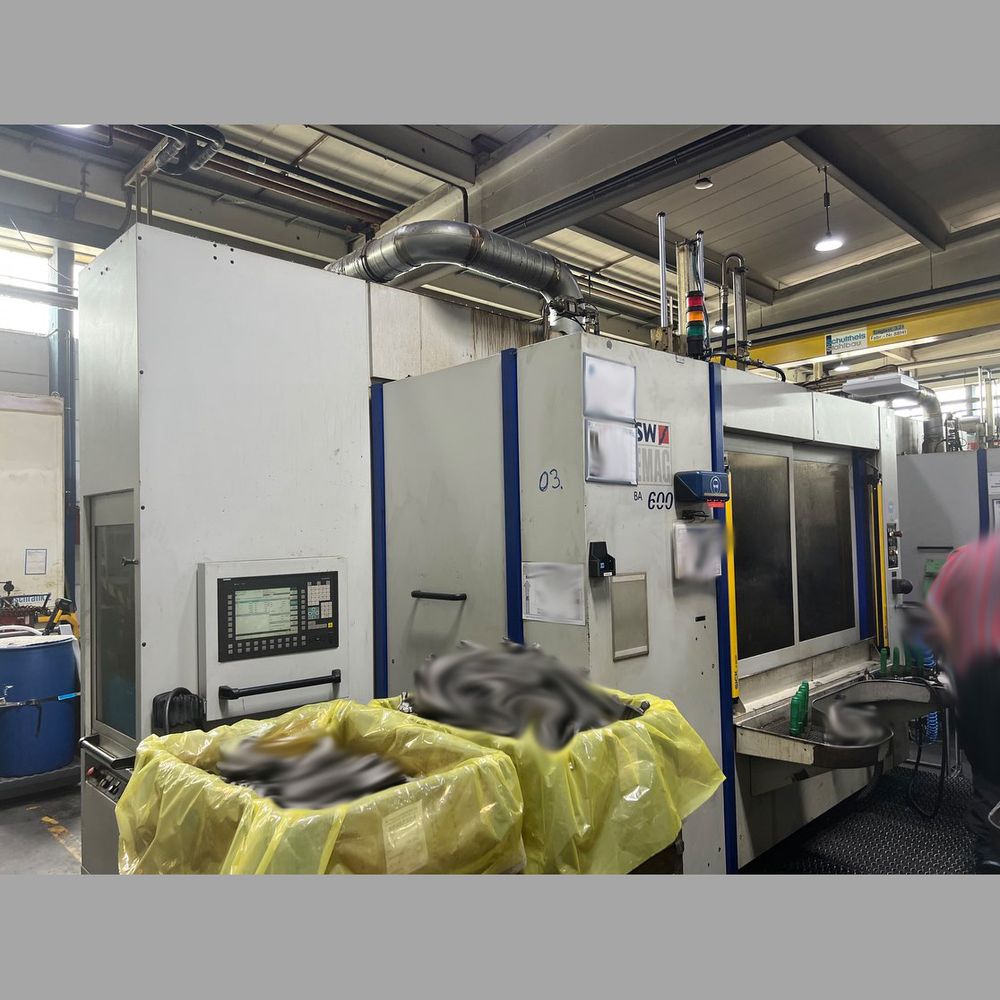

SW (Schwäbische Werkzeugmaschinen) BA 600-2 3 Axis

X travel: 600 mm
Y travel: 600 (975) mm
Z travel: 500 mm
Rapid traverse X/Y/Z: 45/45/45 m/min
Acceleration X/Y/Z: 2.5/2.5/2.5 m/s²
Feed force X/Y/Z: 15000/15000/15000 N
Control: Siemens 840 D
Tool taper: HSK-A100
Max spindle speed: 10000 rpm
Spindle power at 10-40/100% duty: 2x38 kW
Spindle torque at 10-40/100% duty: 2x363 Nm
Spindle diameter in front bearing: 100 mm
Spindle distance: 600 mm
Tool magazine: 2x40 stations
Max tool diameter: 100 mm
Max tool diameter without adjacent tools: 250 mm
Max tool length: 350 mm
Max workpiece weight: 20 kg
Chip-to-chip time: 4.9 s
Automatic workpiece changer: 2 fold
Rotary table diameter: 340 mm
Hydraulic clamping: 250 bar
Additional clamping circuits: 6
Operating voltage: 3x400/50 V/Hz
Machine length: 5150 mm
Machine width: 8650 mm
Machine height: 4200 mm
Machine weight: 20000 kg
Tool breakage monitoring by Toolinspect
Fully enclosed work area
Automatic working range sliding door
Work area light
Preparation for central oil/emulsion mist extraction unit
Chip conveyor
Coolant unit
High pressure pump 70 bar
Additional control panel for tool management
Warning lamp
Automatic central oil lubrication
Horizontal milling spindles: 2 pcs
Swivel unit for clamping bridge: 2 pcs
Swivel unit NC-controlled
Rotary table NC-controlled: 2 pcs on one clamping bridge
Clamping bridge supports
Air-monitored clamping of workpiece
Machine operated with emulsion
Machine hours: spindle approx. 9320
Shifts: 2–3 shift
Operating hours: 4764
