Swift Gap Bed Heavy Duty Centre Lathe 535 rpm 16V5
Ref :
2719865-3-MT
Condition :
Used
Manufacturer :
Swift
Type :
Gap Bed Heavy Duty Centre Lathe
Spindle Speed :
535 rpm
Model :
16V5
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
28 Jul. 2025

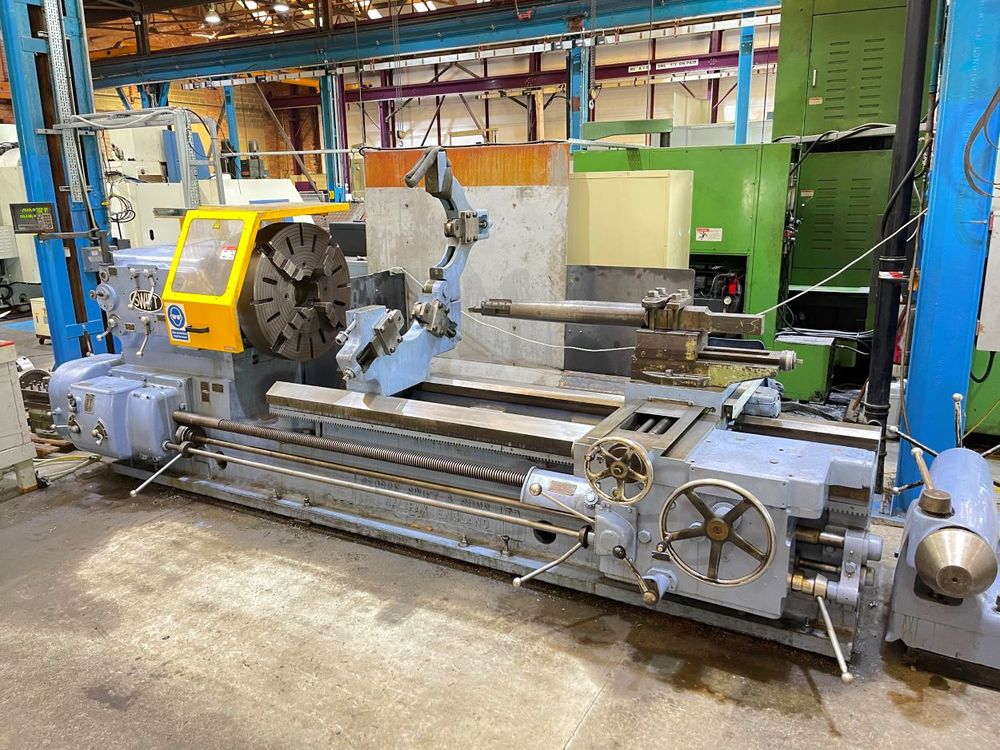

SWIFT 16V5 Gap Bed Heavy Duty Centre Lathe
with Newall DP700 DRO
Main Specifications:
Swing over bed: 32”
Swing over cross slide: 24”
Swing in gap: 64”
Distance between centres: 80”
Spindle speeds: 2.2 – 535 rpm
Spindle bore: 4 3/16”
Width of bedways: 30”
4-jaw chuck: 31 1/2”
Tailstock taper: 6MT
3-point roller steady capacity: 16” diameter
3-way toolpost
Additional boring bar toolpost
Interlocked chuck guard
Machine Dimensions:
Length x Width x Height: 180” x 78” x 86”
Approximate weight: 10,000 kg
