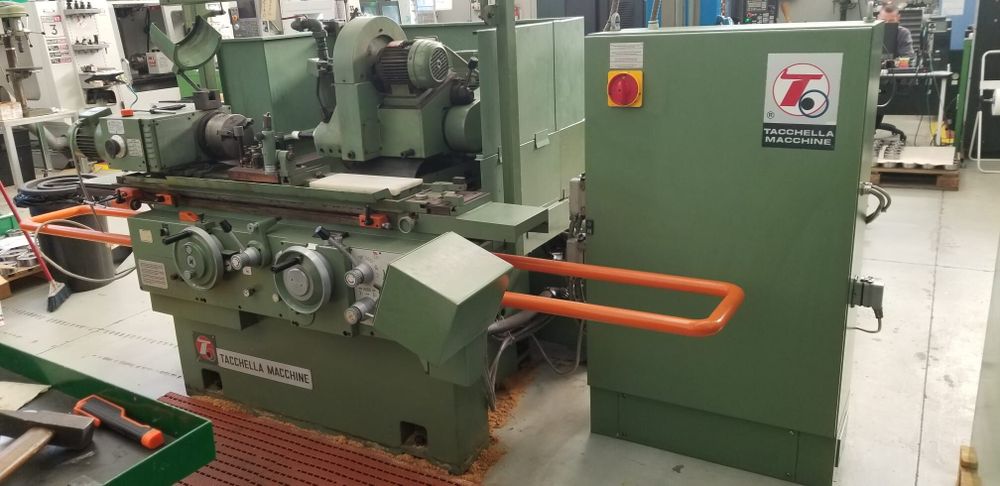

Tacchella 612UN

Centre Distance: 600 mm
Centre Height: 120 mm
Travel Z: 600 mm
Travel X: 250 mm
Max. Grinding Length: 600 mm
Max. Grinding Diameter: 240 mm
Max. Internal Diameter: 10 - 270 mm
Max. Internal Depth: 440 mm
Table Stroke: 4 - 600 mm
Cross Speed: 100 - 7000 mm/min
Max. Workpiece Weight: 100 kg
Table Tilt: 10°
External Spindle Power: 4 kW
External Spindle Speed: 1640 - 1900 rpm
Internal Spindle Power: 1.1 kW
Wheel Band Thickness: 70 mm
Max. Wheel Diameter: 355 mm
Wheel Hole Diameter: 127 mm
Workpiece Head Speed: 22 - 580 rpm
Workpiece Head Tilt: 90°
Workpiece Head Taper: MK3
Tailstock Quill Diameter: 20 mm
Tailstock Quill Stroke: 20 mm
Tailstock Taper: MK3
Filtration Unit: Paper Filter Tank
Maintenance and Use Books Included
Electrical Drawings Included
CE Certified
Total Power Supply: 6.45 kW
Machine Weight: 2400 kg
Floor Space: 2660 × 1850 × 1750 mm
