Tacchi SIEMENS 810 1000 rpm HD 1000 CNC 2 Axis

Ref : 2390842-3-GO

Condition : Used

Manufacturer : Tacchi

Controller : SIEMENS 810

Spindle Speed : 1000 rpm

Model : HD 1000 CNC

Nb Of Axis : 2 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

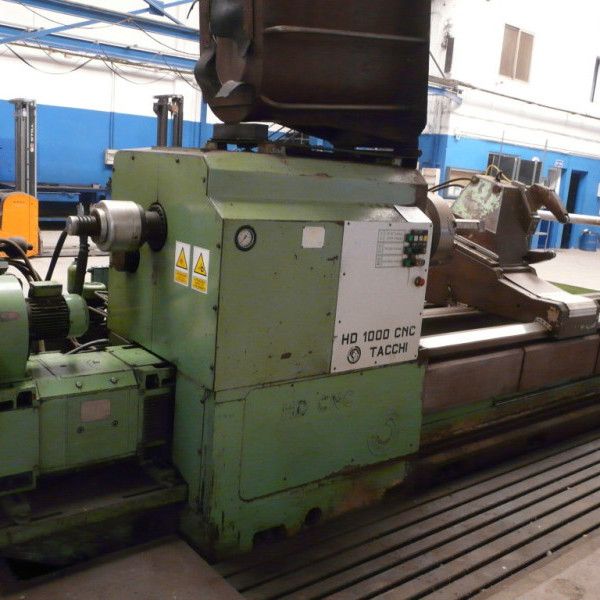

TACCHI HD 1000 CNC (1)
SWING OVER BED
1000 mm
SWING OVER SADDLE
700 mm
DISTANCE BETWEEN CENTRES
5000 mm
BED WIDTH
720 mm
SPINDLE NOSE TAPER
DIN 55021 GR.11
SPINDLE MOTOR POWER
60 hp
SPINDLE SPEED
37-1000 rpm
GEARS NUMBERS
3
SPINDLE BORE
105 mm
QUILL DIAMETER
140 mm
QUILL TRAVEL
200 mm
WORK FEEDS
6000 mm/min
RAPID FEEDS
6000 mm/min
TURRET
8 positions BARUFFALDI RH 300
CNC
SIEMENS 810

ACCESSORIES
support for bore on the saddle, motorized tailstock, automatic steady diam 300, chip conveyor
