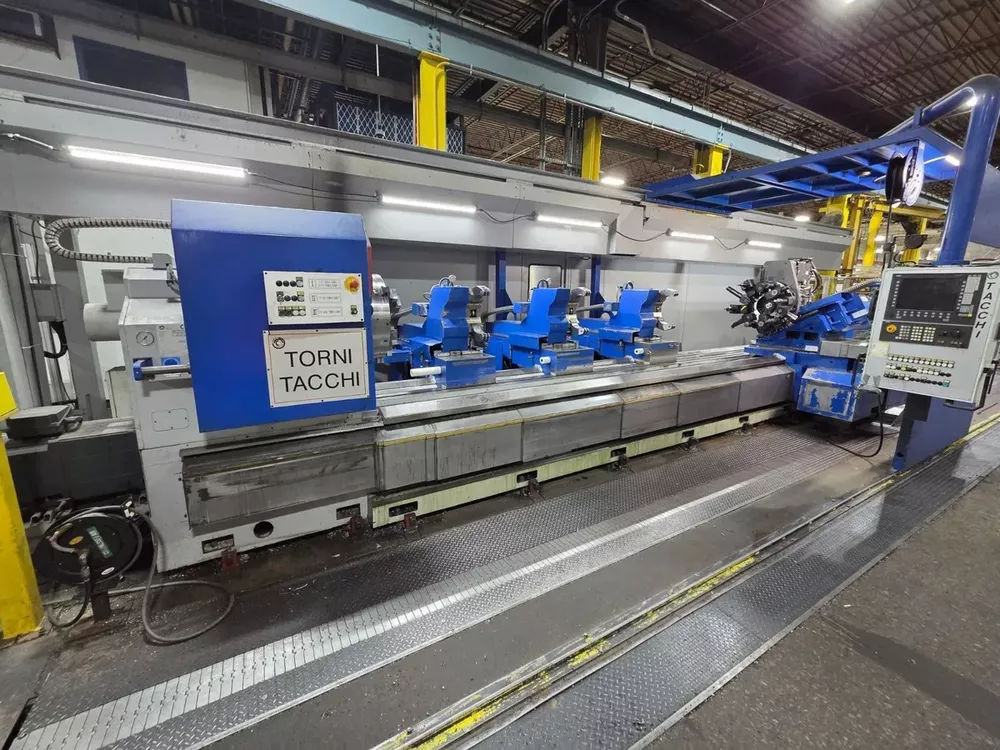

Tacchi Siemens 840D SL CNC 1000 RPM HD/3 90L 600 X 10000 2 Axis

Rapid traverse X-axis: 236.2 ipm
Rapid traverse Z-axis: 236.2 ipm
Control: Siemens 840D SL CNC
Remote handwheel
Heidenhain scales on X axis
Heidenhain scales on Z axis
Renishaw tool probe TS13
Renishaw tool probe RMP60
Swing over bed: 45.27 in
Swing over saddle: 29.52 in
Distance between centers: 393.70 in
Weight between centers unsupported: 19,800 lb
Spindle speed range: 3–1000 RPM
Number of speed ranges: 3
Maximum torque: 6570 ft-lb
Main spindle motor: 67 hp
Spindle nose: DIN 55026 size 11
Spindle bore: 4.13 in
Live milling spindle speed: 3000 RPM
Live milling spindle motor: 20 hp
12-station disc turret
Baruffaldi TBMA 302/12 turret with live milling
24.8 in Rohm chuck
12.4 in Rohm chuck
Tailstock quill diameter: 7.28 in
Tailstock quill stroke: 11.81 in
Tailstock taper: #6
3 programmable self centering steady rests with longitudinal positioning
Manual 3-point roller type steady rest
Carriage can pass steady rests and tailstock
Tailstock quill thrust compensation
Coolant system for turning operations
Coolant system for milling operations
Telescoping steel way covers
Full length chip conveyor
Automatic lubrication system
460 volt 3 phase 60 Hz electrics
