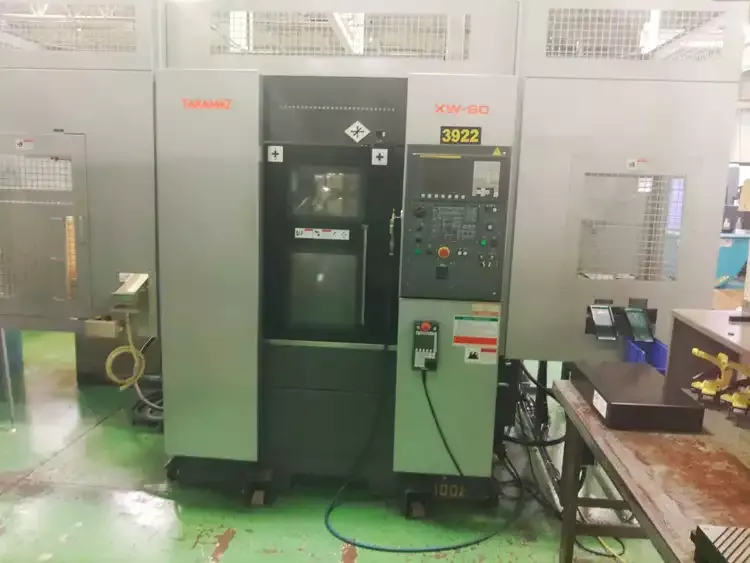

Takamaz TAKAMAZ & FANUC 0i-TF Max. 4,500 (6,000 optional) min⁻¹ XW-60 2 Axis

Spindle speed: Max. 4,500 (6,000 optional) min⁻¹
Spindle bearing I.D.: φ75 (φ65 optional) mm
Chuck size: Collet, 6 (5 optional) × 2 inch
Tool post type: 8-station turret × 2
Tool post type: 10-station turret × 2
Max stroke X: 125 mm
Max stroke Z: 140 mm
Rapid traverse rate X: 21 m/min
Rapid traverse rate Z: 18 m/min
Tool storage capacity: 10 pcs (one side)
Tool rotation speed: 4,000 min⁻¹
Capabilities: φ13, M4–M10 mm
Spindle motor: AC 7.5 / 5.5 × 2 kW
Machine width × length: 1,595 × 2,005 mm
Machine width × length: 1,695 × 2,005 mm (optional)
Controller: TAKAMAZ & FANUC 0i-TF
Loader model: ΣiGTH60 (high speed type)
Workpiece diameter (reference): φ60, φ55 (φ60) mm
Workpiece length (reference): 60 mm
Max load capacity: 1.0 kg
Rapid traverse rate X (loader): 45 m/min
Rapid traverse rate Y (loader): 125 m/min
Rapid traverse rate Z (loader): 120 m/min
Rapid traverse rate X (alternative): 35 m/min
Rapid traverse rate Y (alternative): 170 m/min
Rapid traverse rate Z (alternative): 170 m/min
