Takisawa CNC CONTROL 8000 1/min TT 500 GD 2 Axis

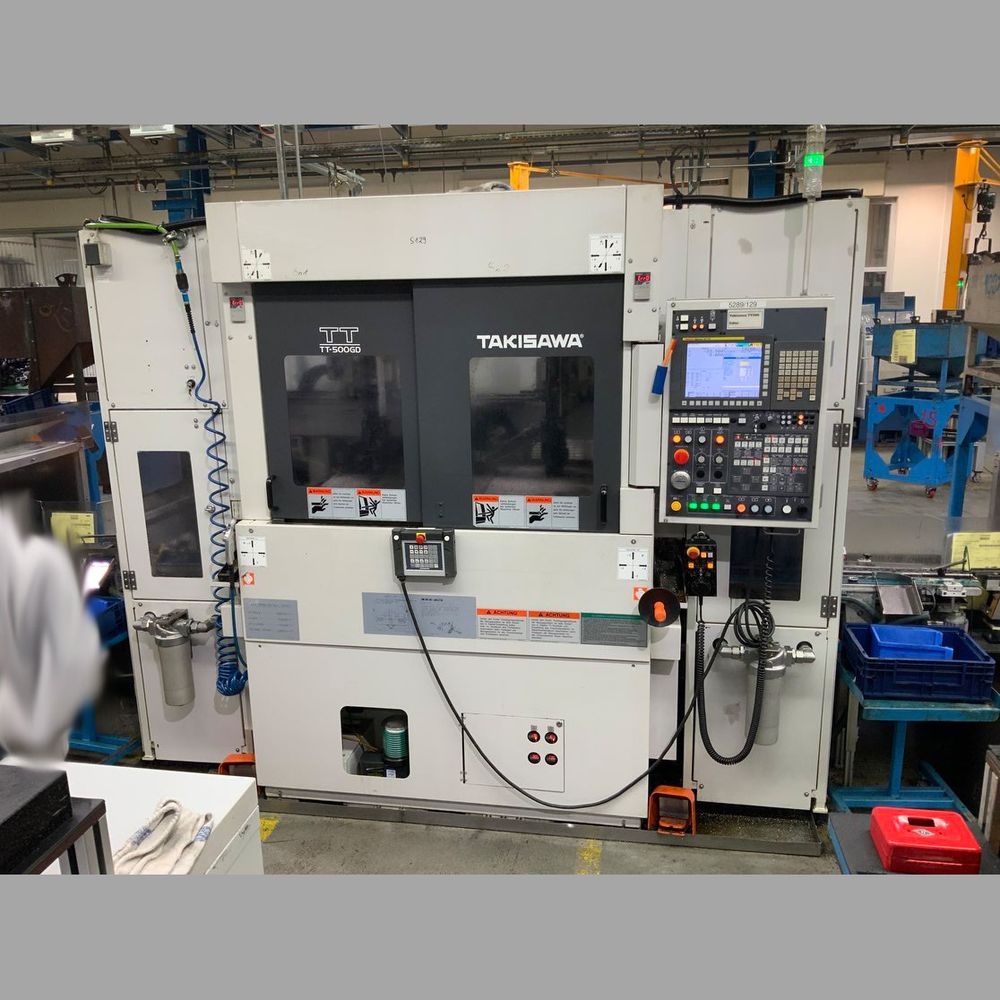

TAKISAWA TT 500 GD
Control: Fanuc 0i TF
New in: 2018

Programme run approx. (hrs): 9956
Control on approx. (hrs): 32085

TURNING
Max. turning diameter 50 mm
Max. turning length 50 mm
2 pc. Main spindle/-s - Frontloader
Max. speed main spindle 8000 1/min
Max. power main spindle at 10-40/100% duty ratio 7,5/3,7 kW
Spindle bore main spindle 37 mm
Spindle diameter in front bearing main spindle 80 mm
Spindle flange size main spindle 80 F
Travel in X/Z 250/300 mm
Max. rapid traverse in X/Z 20/24 m/min
Solid clamping cylinder at main spindle
Coolant through main spindle
Air-monitored clamping of workpiece LH and RH
Block tool holder
No. of stations/driven 5/0

FURTHER EQUIPMENT
Tool breakage monitoring
Fully enclosed work area
Light in working area
Slat band chain chip conveyor
Machine operates/operated with emulsion
Coolant unit
Stronger coolant pump
2 pcs. Part infeed conveyor
2 pcs. Part outfeed conveyor
Part shute SPC control
2 pcs. Internal gantry-type loading-/unloading unit
Monitoring of proper clamping and lenght in loader mm
Turn around unit
Warning lamp
Automatic central lubrication

GENERAL TECHNICAL DATA
Total power requirement 35 kVA
Machine dimensions (LxWxH) approx. 2560 x 2485 mm
Machine weight approx. 4300 kg
