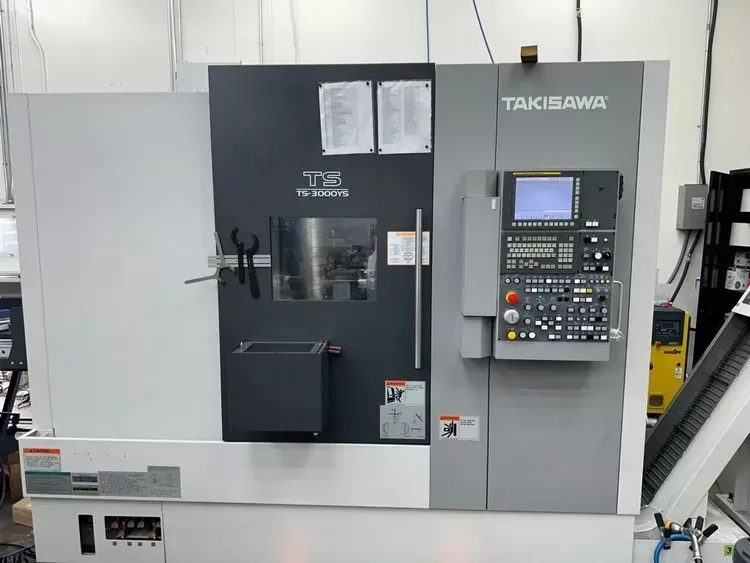

Takisawa CNC (Fanuc 32i Model B) 4,500 RPM TS-3000YS 5 Axis

Axis: 5
Swing: 14.5"
Machining Length: 21.65"
Chuck Size: 8"
Bar Capacity: 3.15"
Control: CNC (Fanuc 32i Model B)
Power: 20 hp
Max RPM: 4,500 RPM
Turning Diameter: 14.5"
Tailstock: Yes
Upper Turret Y-Axis (Y1-Axis)
Lower Turret Y-Axis (Y2-Axis)
Sub Spindle Right Spindle
Type of Turret: 12-Station C & Y Axis Turret (T12)
Left Spindle Speed min-1: 4,500
Right Spindle Speed min-1: 6,000
Rotary Tool Speed min-1: 6,000
Rapid Traverse Rate Upper Turret X1: 20 m/min
Rapid Traverse Rate Upper Turret Y1: 12 m/min
Rapid Traverse Rate Upper Turret Z1: 40 m/min
Rapid Traverse Rate Lower Turret X2: 20 m/min
Rapid Traverse Rate Lower Turret Y2: 12 m/min
Rapid Traverse Rate Lower Turret Z2: 40 m/min
Left Spindle Motor (S3 25%/continuous): 15/11 kW (20 Hp)
Right Spindle Motor (S3 25%/continuous): 11/7.5 kW (15 Hp)
Rotary Tool Motor (S3 25%/continuous): 5.5/3.7 kW (7.5 Hp)
Machine Height: 87.7"
Required Floor Space L: 173"
Required Floor Space W: 107.7"
Required Floor Space D: 107.7"
Machine Weight: 18,260 lbs
Highly rigid 45° slant bed
Upper/Lower Y-Axis travel: +45～-45 mm
Optional Factory unloader and discharge conveyor
LNS QL-80 Magazine Barfeed Installed with Liner Tubes
Optional Factory Supporting Automation
