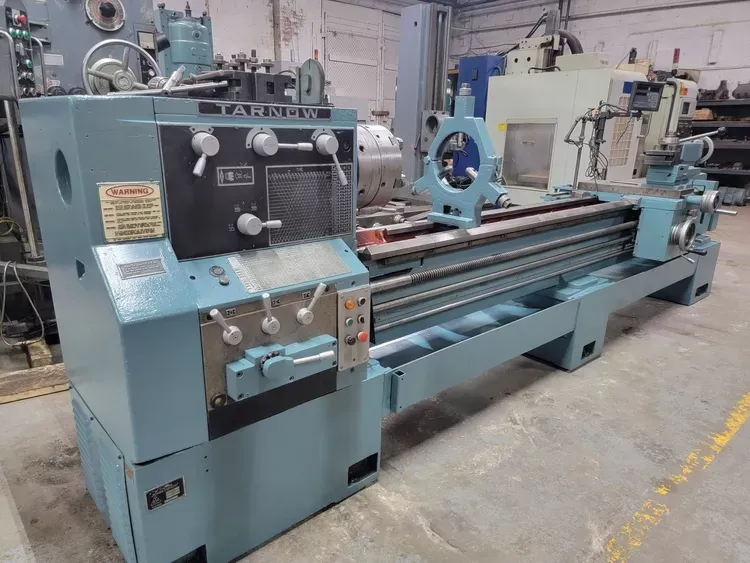

Tarnow Engine Lathe 1600 RPM TUJ50M

Technical Specifications
Swing Over Bed: 22"
Swing Over Removable Gap: 31.5"
Swing Over Cross Slide: 14.5"
Distance Between Centers: 120"
Length of Gap: 11.25"
Spindle Speeds (18): 20 - 1600 RPM
Feeds - Longitudinal (98): 0.0007" - 0.720"/Rev
Feeds - Cross (98): 0.0004" - 0.360"/Rev
Threads - Inch (70): 1/4 - 56 TPI
Threads - Metric (59): 0.5 - 112 TPmm
Spindle Hole Diameter: 3.5"
Spindle Nose: D1-11 Camlock
Main Motor: 15 HP
Voltage: 220/440V, 3-phase (wired 440V)
Approximate Dimensions: 184" x 54" x 54" H

12" Diameter BTC 6-Jaw Chuck
18" 4-Jaw Chuck
Taper Attachment
10" Diameter Roller Bearing Steady Rest
Live Center
Threading Dial
Hardened and Ground Bed Ways
Chip Pans
Coolant System
Newall Digital Readout System
