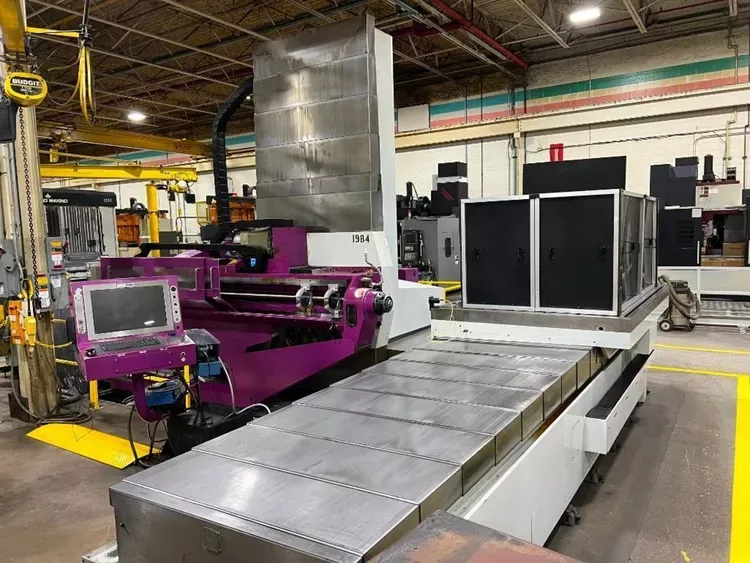

Tarus TPTCGD508SB 3500 RPM

Gun Drilling Diameter Max 2"
Drilling Diameter Min 0.125"
BTA/STS Drill Diameter No Pilot 7.5"
BTA/STS Drill Diameter With Pilot 2.22"
Number of Spindles 2
Main Spindle Horsepower 29.5 HP (22 kW)
Auxiliary Spindle Horsepower 29.5 HP (22 kW)
Main Spindle Speeds 0-3394 RPM
Auxiliary Spindle Speeds 0-3500 RPM
Auxiliary Spindle Taper CAT 50
Auxiliary Spindle Stroke 10"
Table Dimensions L x W 96" x 62"
Table Weight Capacity Max 30,000 lbs
Table Travel X-Axis 106"
Vertical Head Travel Y-Axis 60"
Column Travel Z-Axis 46"
Drill Stroke W-Axis No Whip Guides 93"
Drill Stroke W-Axis With 3 Whip Guides 81.4"
Taper CAT 50
TPI-2000 PC Based CNC Control
Auxiliary Spindle For Milling, Thread Milling, Tapping, Counter Boring, Spot Facing
22.5" x 38" Tecnomagnete Electro-Magnetic Chuck With Controls
Handheld Remote Pendant Controller
Telaflex Way Covers
High-Pressure Coolant System
Wardcraft Chip Conveyor Model SHSBB1600-T3
Weight 30,000 lbs
Table Width 62"
Table Length 96"
