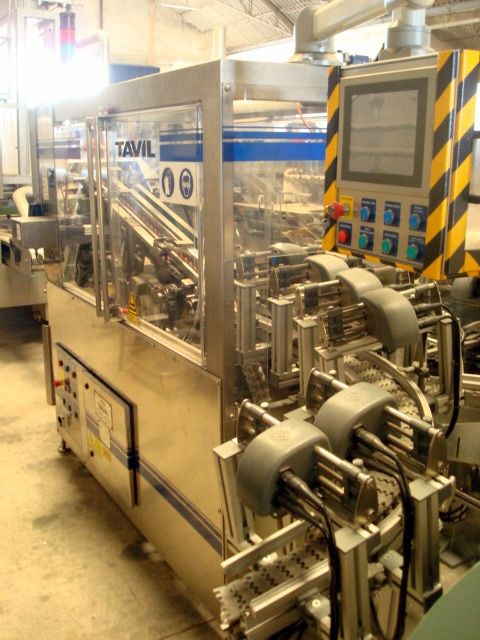

Tavil CASE FEEDER, ERECTOR AND SEALER

REF-1013, 1014, 1015 TAVIL CASE FEEDER, ERECTOR AND SEALER

TAVIL line for cardboard boxes.
Composed of:

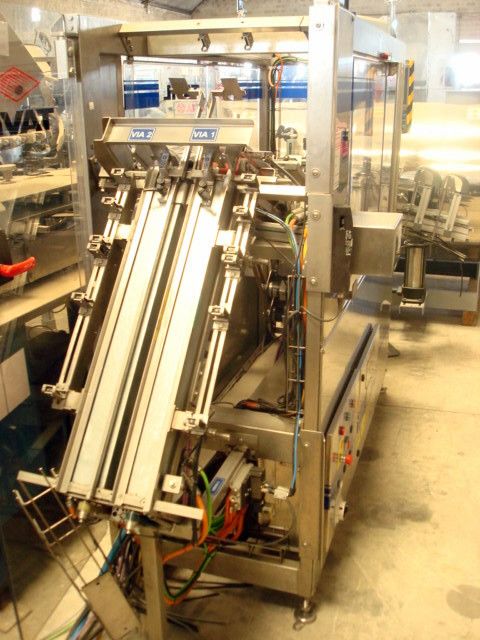

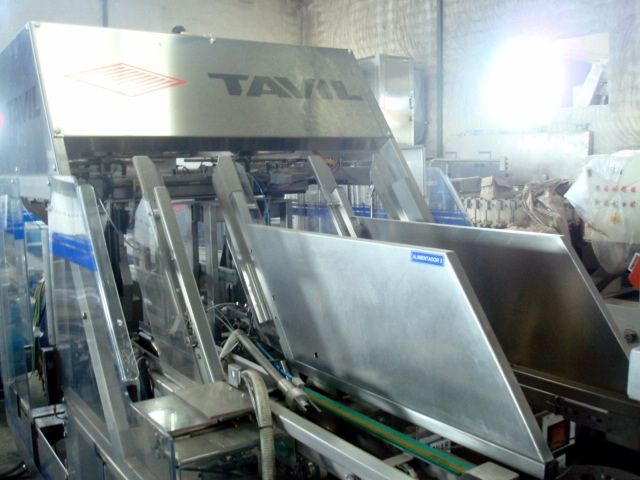

1. REF-1013 TAVIL MULTIFORMAT CASE FEEDING SYSTEM
Multi-format feeding system
Product guide with adjustable width
Brand: TAVIL
Model: 02600101
Date of manufacture: 07/2009
380 V / 50 Hz / 3-ph
Overall dimensions (mm): 3,200 x 900 x 2,200 (LxWxH)

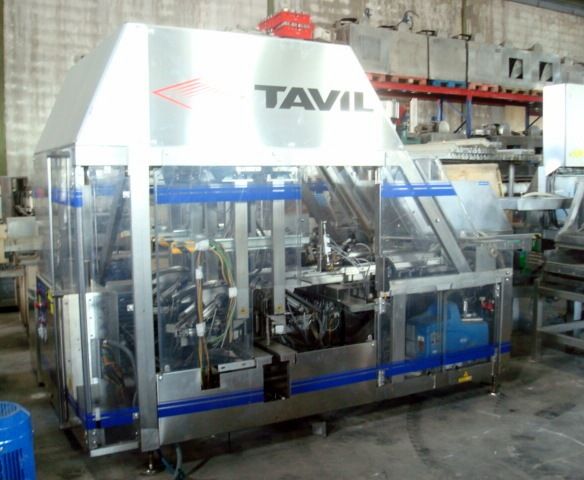

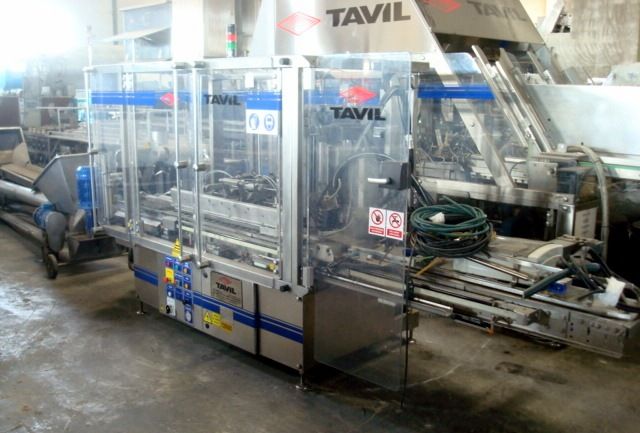

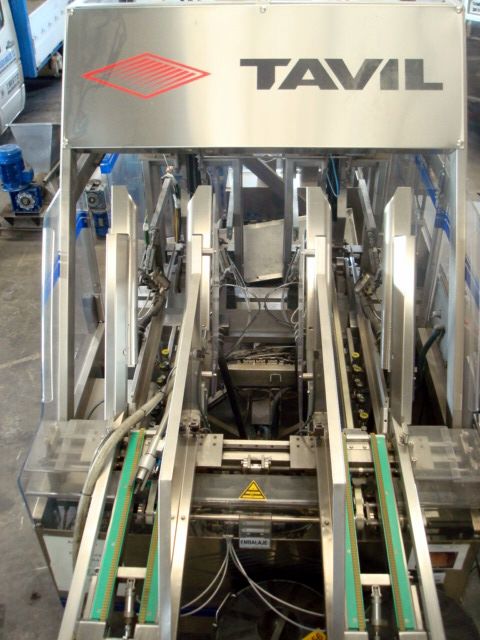

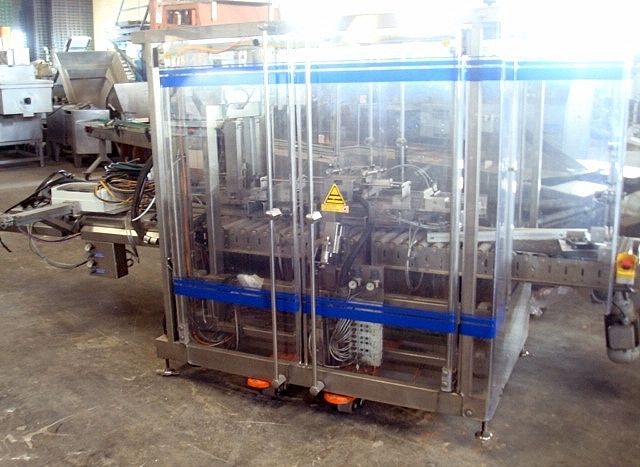

2. REF-1014 TAVIL MULTIFORMAT CASE ERECTOR
Multiformat case/carton erector manufactured by TAVIL
Model: 008223
Date of manufacture: 07/2009
Stainless-steel construction
Multiformat system
Output: approx. 840-960 cases/h (depending on the type of feeder and box size)
Base: mixture of thermoplastic synthetic resins
380 V / 50 Hz / 3-ph
Overall dimensions (mm): 3,800 x 1,800 x 2,450 (LxWxH)

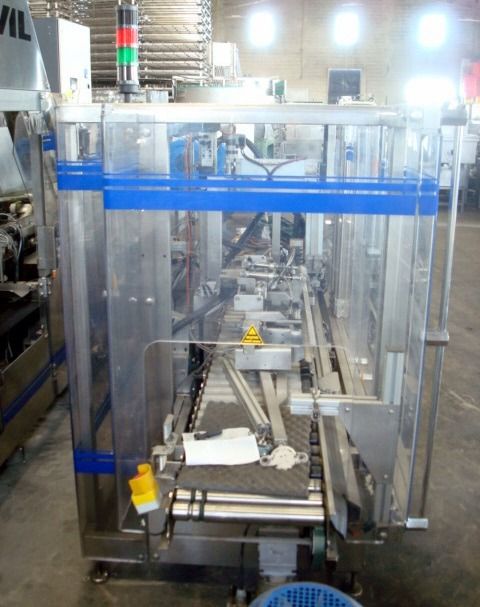

3. REF-1015 TAVIL MULTIFORMAT DOUBLE CASE SEALER
Case /carton sealing machine manufactured by TAVIL
Model: 012123
Date of manufacture: 07/2009
Multiformat system
380 V/ 50 Hz / 3PH
Minimum and maximum case size:
- width: 70-378 mm
- length: 130-400 mm
- height: 100-360 mm
Overall dimensions: length-3,900mm, width-1,200mm, height-2,050mm

ALSO SOLD SEPARATELY. (PRICE ON REQUEST)
