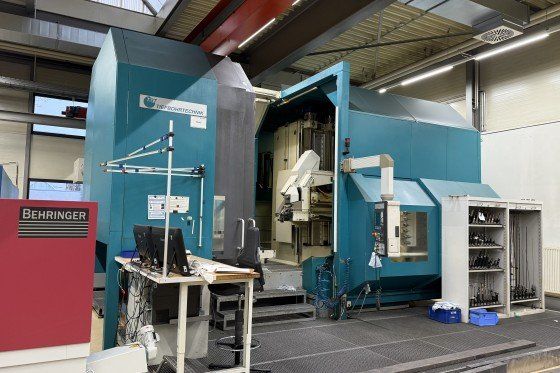

TBT Tiefbohrtechnik BW 250-S 8000 rpm

TBT Tiefbohrtechnik BW 250-S
2007

CNC control SIEMENS 840D
Max drilling diameter (steel) 40 mm
Drilling depth 1500 mm
X-axis travel 2000 mm
Y-axis travel 1300 mm
Z-axis travel 1500 mm
W-axis travel 750 mm
Table load capacity 15000 kg
Table size 1600 x 1200 mm
Spindle taper HSK 63 Mk
Spindle power 11 kW
Spindle speed 8000 rpm
Machine length (approx.) 7200 mm
Machine width (approx.) 7800 mm
Machine height (approx.) 4250 mm
Machine weight (approx.) 23000 kg
A-axis swivel range +25° to -15°
Coolant system with 1000 L capacity
Chip conveyor 2000 x 1200 mm discharge height
Tool changer with 20 positions (tower station)
ELB drilling capacity 3 – 35 mm
Milling capacity 250 ccm/min
Feed rate X/Y/W/Z axes 15000 mm/min
Cutting hours approx. 15000
Large tooling package included
