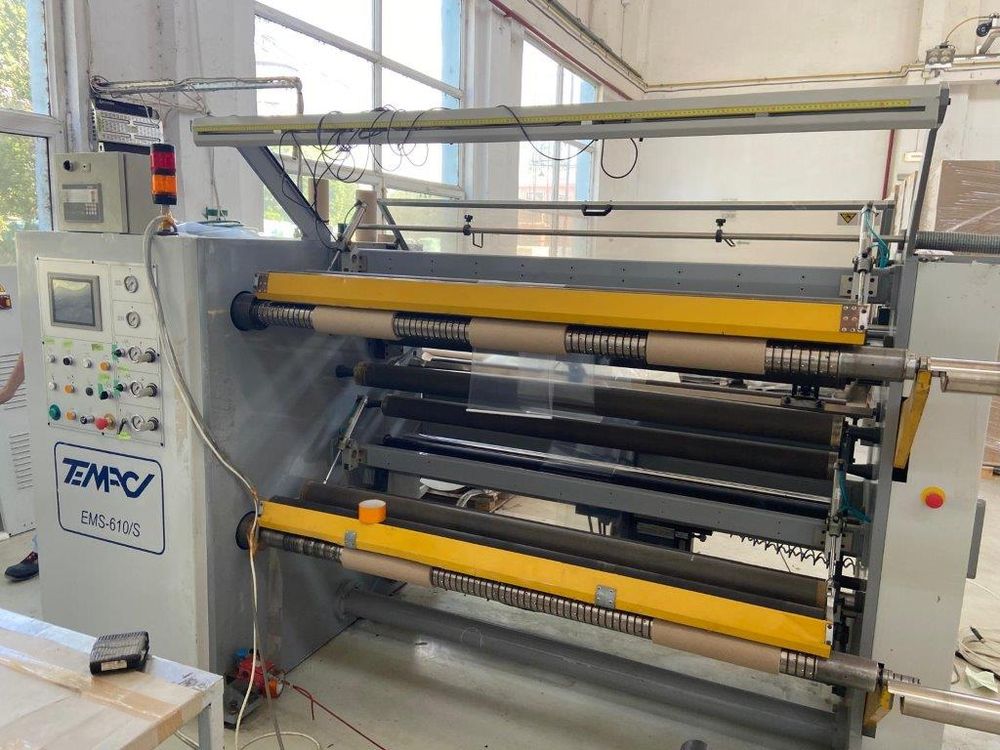

Temac EMS-610/S 1600 mm

Slitter Rewinder
1.04 Typology Twin camshaft
1.05 Winding Diameter 600mm
1.06 Max. diameter of mother coil 1000 1200-mm
1.07 Trim system Yes
1.08 Minimum cutting width 20 mm
1.09 Mechanical speed (m/min) 500 m / min
1.10 Power supply 400V, 50Hz
1.13 Cutting group Double cutting system for both razor blades and circular knives
1.14 Compressed air supply Max 6-8 bar
1.15 Material Paper, plastic films and laminates
1.16 Maximum material width 1600 mm
1.17 Web guides Yes
1.18 Unloading coils With unloading turret
1.19 Accessories Vacuums trims
1.20 Availability Immediate
1.21 More information Both 76 and 152 mm (3 and 6 inch) friction shafts
