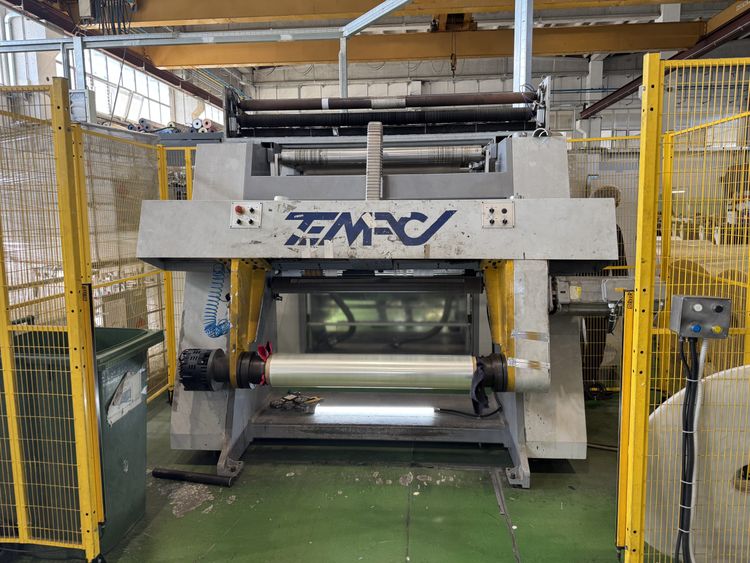

Temac SRS 962 – 1300

Slitter Rewinder
1.04 Typology Twin camshaft
1.05 Max. mother coil diameter 1000 mm
1.06 Max. diameter of derived coils 600 mm
1.07 Trim system Yes
1.08 Minimum cutting width 25mm
1.09 Mechanical speed (m/min) 800 m / min
1.10 Power supply 400V, 50Hz
1.13 Cutting group pneumatic circular knives
1.14 Compressed air supply 6-8 bar MAX
1.15 Material Plastic films, coupled, coextruded, paper and aluminum
1.17 Web guides Yes
1.18 Unloading coils With unloading turret
1.19 Max cutting bands [900 mm] 1200 mm
1.20 Min cutting bands [200 mm] 30 mm
1.21 Accessories :
Compact unwinding carriage type
ShaftlessN. 2 winding stations equipped with shafts fully frictioned with locking system ball spindles
Double cutting system with razor blades oscillating and circular knives
; “Laser” positioners for spindles in wrapping;
Side coil unloading system work;
Roller counter-balancing system computer-controlled squeezers;
Remote assistance system via modem or ethernet connection
1.21 Availability [Immediate] Immediate
