Tennsmith SBS126-14-40 Bending Capacity (Mild Steel) 14ga / 2,0mm

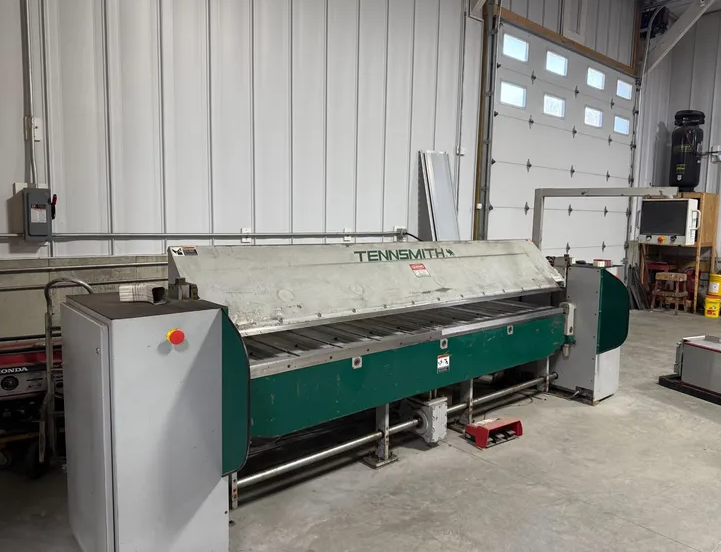

TENNSMITH SBS126-14-40

Bending Capacity (Mild Steel) 14ga / 2,0mm
Bending Capacity ( Stainless) 16ga / 1,5mm
Bending Length 126 in / 3200mm
Bending Bars 1 in / 25mm and 7/16 / 11mm
Back gauge Depth (Standard) 41 in / 1041 mm
Back gauge Depth (Opitional) 61 in / 1550 mm

Clamping Beam Opening Height 7 in / 178mm
Clamping Beam Tooling 30 Degrees
Folding Beam Adjustment 1 in / 25mm
Crowning of the Folding Beam 3-Point 0”-0.030” Adjustment
Working Height 34 in / 864mm

Machine Length 180 in / 4572mm
Machine Width 96 in / 203mm
Machine Height 72 in / 1829mm
Machine Weight 9,020 lbs
Shipping Weight 9,885 lbs.
Back Gauge Motor ¾ hp
Clamping Beam Motor 2 hp
Bending Beam Motor 2 + 2 hp

Speeds SBS12614
Clamping Beam Speed 2.5” per second
Folding Beam Speed 90 deg per second
Back gauge Speed (0.375” to 41”) 7 seconds
