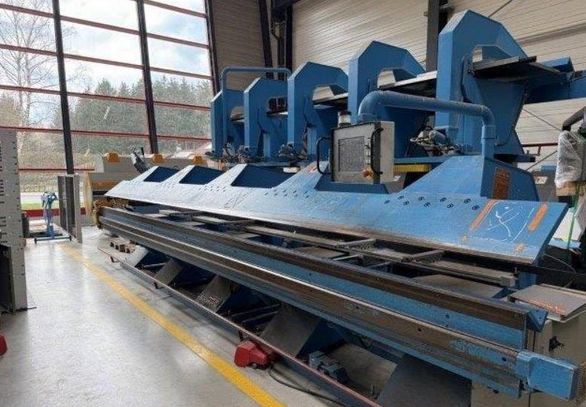

Jorns ML 150-SW-SM-CP200-6.4-hs Max sheet thickness (steel) 1.5 mm
Ref :
2754755-3-AW
Condition :
Used
Manufacturer :
Jorns
Model :
ML 150-SW-SM-CP200-6.4-hs
Sheet Size :
Max sheet thickness (steel) 1.5 mm
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
New CNC CP200 control (retrofit 2025)
Motorized depth stop with four stop units
Hydraulic sheet thickness adjustment
Manual upper beam crowning
Motorized slitting shear
Foot switch
Emergency stop rail
Working length 6400 mm
Max sheet thickness (steel) 1.5 mm
Max sheet thickness (aluminum) 2.5 mm
Max sheet thickness (stainless steel) 1.0 mm
Throat depth 1050 mm
Max bending angle 145°
Sheet thickness adjustment hydraulic
Upper beam lift (opening width) 200 mm
Backgauge max 1000 mm
Number of frames 5
Crownbreak manual
Control CP200
Total power requirement 32 A
Weight 5000 kg
Dimensions 7600 x 1900 mm
Color blue
Condition used
