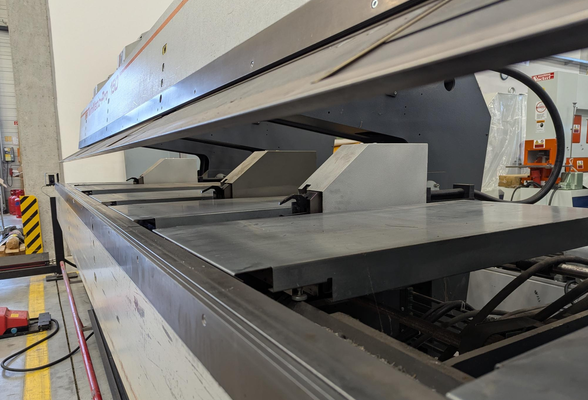

Jorns TP150-RH-1150-CNC8000-6.4-hs Working length: 6400 mm

4 pneumatic clamping fingers with short-part clamping finger
Extension rail
Foot pedal
Sheet cassettes
Upper beam with seam groove
Hydraulic material thickness adjustment
Clamping and angle stop (Matic)
Machine repaired, inspected, cleaned
Test run performed

Max sheet thickness (steel): 1.50 mm
Max sheet thickness (aluminum): 2.00 mm
Max sheet thickness (VA): 1.00 mm
Max bending angle: 145°
Insertion depth: 1150 mm
Backgauge (max): 1150 mm
Backgauge (min): 15 mm
Upper beam stroke (opening width): 200 mm
Number of stands: 5
Bombing: manual
Control: CNC 8000
Power requirement: 20 A
Dimensions: 7332 × 3721 × 2040 mm
Weight: 9250 kg
